ARGB Hub and 3 Fan Kit
Amazing Value. Powerful ARGB. Perfect All In One Kit.
“A fantastic kit to consider if you are looking to add some ARGB colour to your chassis or upgrade the stock fans and hub”
ARGB Fan Hub & 3 Fan Kit
3 x GameMax Velocity fans enables you to configure the airflow that suits your system needs. The Velocity fans are unique to a lot of fans currently on the market, a massive 24 LEDs will bright up your entire rig and with complete PWM control you can set your fan speed for the right amount of noise and airflow.
ARGB Hub – Connect your fans and sync them using the included PWM hub, connect up to six fans (3 or 4 pin) and 6 3 Pin AURA connections.
RF Remote Controller – As well as been able to control your fans from your chassis using the built in PWM hub and 3 Pin AURA connector, you can control your fan speed, LED speed or colour mode without any fuss using the RF (radio frequency) remote control.
SATA Power + 3 Pin Mal
3 PIN MOBO CONNECTOR + PWM CONNECTOR
3 PIN led pOWE + MOLEX FAN POWER
ARGB Hub and 3 Fan Kit

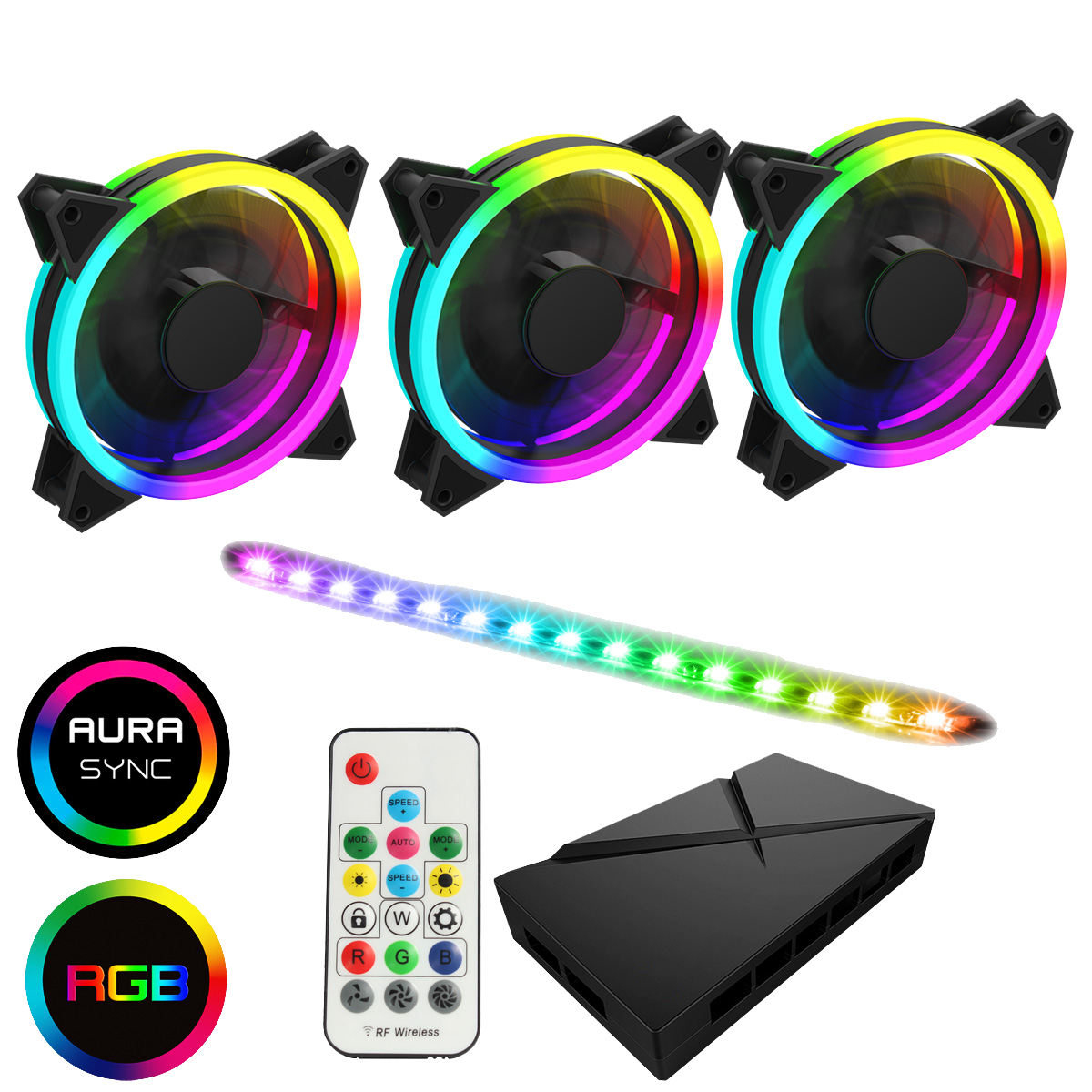

Brand new for 2019 GameMax are proud to introduce the first ARGB 3 In 1 Kit, the ultimate ARGB kit. The kit includes 3 x GameMax Velocity fans, 1 x GameMax Viper ARGB LED strip, ARGB hub and an RF remote controller.
3 x GameMax Velocity fans enables you to configure the airflow that suits your system needs. The Velocity fans are unique to a lot of fans currently on the market, a massive 24 LEDs will bright up your entire rig and with complete PWM control you can set your fan speed for the right amount of noise and airflow.

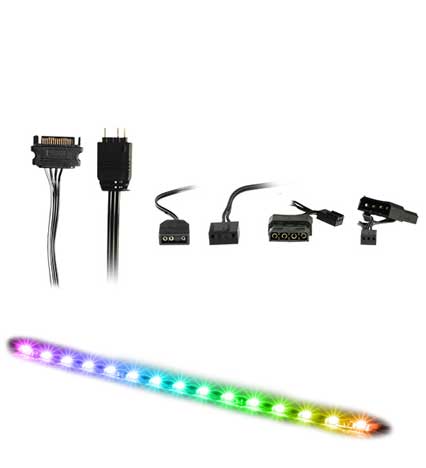

Add even more ARGB with the GameMax Viper ARGB LED strip with 15 LEDs enabling incredible lighting, it uses 5050 LEDs lighting every inch of your rig. Easy installation with the four included magnets and 3m adhesive tape you can fit on steel, aluminium or plastic chassis’.
Sync your fans and LED strip together using the ARGB hub, not only can you control your products using the hub but the RF wireless remote controller enables you to easily control your devises easily and efficiently.
All the devices come with a 5V addressable 3 Pin AURA connector and when connected to a compatible motherboard giving you unlimited options when it comes to controlling your RGB lighting.
In line with the GameMax ethos this case offers style, performance and the ultimate experience.
Download manual for hub + Fan kit
Key Features

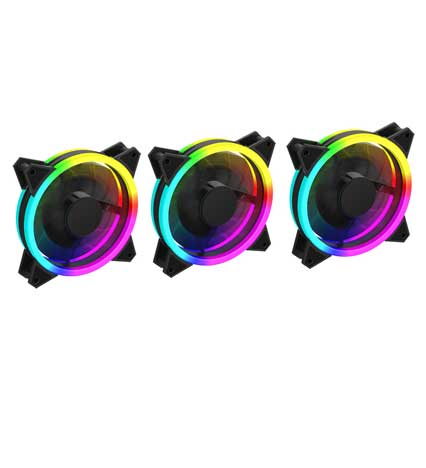

3 x GameMax Dual-Ring Velocity Fans – The Velocity fans are made using 24 LEDs and are dual sided with slim ring LEDs create a brighter look to the inside of your finished build and with complete PWM control you can easily control your fan speed ranging from 500 to 1500RPM.
Motherboard Sync – You can now take your LED colour of your fans and LED strip to new levels with the included ARGB motherboard connector, simply connect the 3pin header to your motherboard and you can use the mobo software to sync your LED strip the way you like and uniform your lighting.

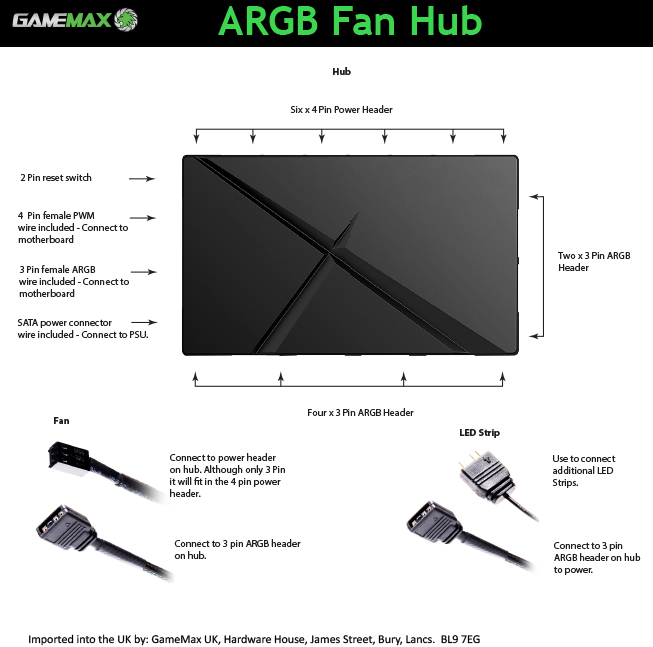

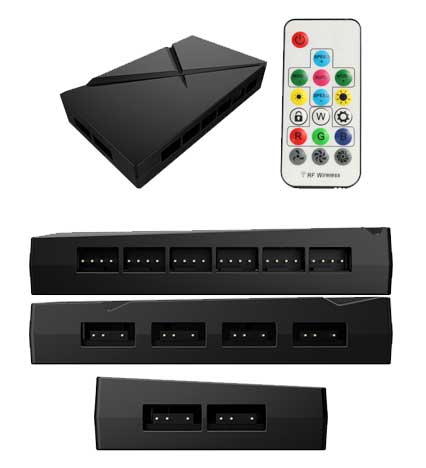

ARGB Hub – Connect your fans and sync them using the included PWM hub, connect up to six fans (3 or 4 pin) and 6 3 Pin AURA connections.

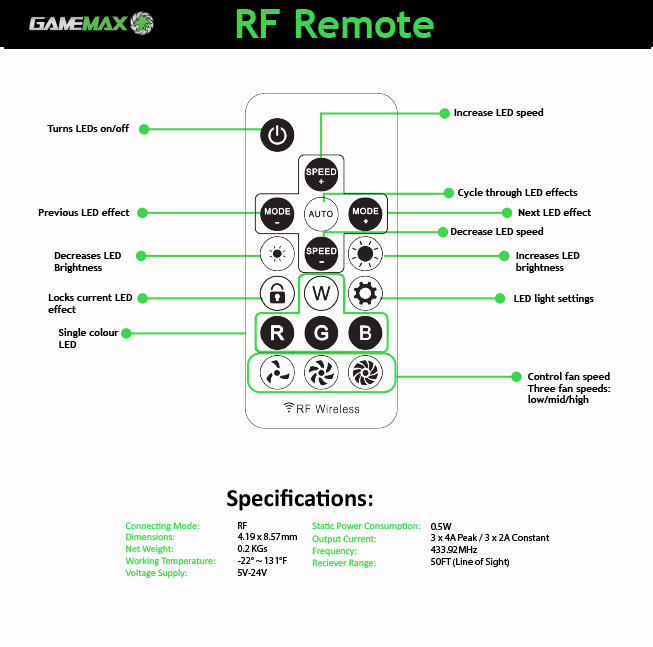

RF Remote Controller – As well as been able to control your fans from your chassis using the built in PWM hub and 3 Pin AURA connector, you can control your fan speed, LED speed or colour mode without any fuss using the RF (radio frequency) remote control.
SATA Powered – The hub powered by a SATA connector ensures safe installation and you can be sure to have safe and reliable power for your connected devices.
Please Note – The unit dimensions are for the Game Max Hub only.
| Game Max Velocity: | |
| Dimensions: | 120 x 120 x 25mm |
| Net Weight: | 0.15 KGs |
| Fan Frame Colour: | Black |
| Fan Blades / Colour: | 11 / Black |
| LED Qty / Type: | 24 / ARGB |
| Bearing Type: | Hydro Bearing |
| Fan Speed: | 1500rpm ± 10% |
| Max. Air Flow: | 94.8 CFM |
| Max. Static Air Pressure: | 1.06mm-H2O |
| Noise Level (max.): | 23.8 dB(A) |
| Cable Length: | 450mm |
| Connectors: | 3 Pin (Addressable) AURA Connector / 3 Pin (Addressable) AURA (Male) Link Connector / 3 Pin Power Connector / Molex |
| Rated Voltage: | 12V |
| Rated Current (max.): | 0.15A |
| Rated Input Power: | 1.8W |
| Test Voltage: | 12V DC |
| Start Voltage: | 5V DC |
| M.T.B.F.: | 40,000 hours |
| Game Max Viper: | |
| Unit Dimensions: | 950mm x 3mm x 10mm (W x H x D) |
| Net Weight: | 0.02 KGs |
| LED Strip Length: | 300mm |
| Daisy Chain Cable Length: | 450mm |
| LED Rated Voltage: | +5V |
| Operating Temperature: | -20°C – 60°C |
| Connectors: | 3 Pin ARGB Male and Female |
| Waterproof Rating: | IP67 |
| LED Light Qty: | 15pcs |
| Magnet Qty: | 4pcs |
| LED Rated Power: | 3.6W |
| LED Rated Current: | 0.72A |
| LED Peak Current: | 0.72A |
| Game Max Hub: | |
| Unit Dimensions: | 95 x 15 x 56mm (W x H x D) |
| Net Weight: | 0.02 KGs |
| Fan Connectors Qty: | 6 |
| Fan Connectors: | 3 or 4 Pin Fan |
| LED Connectors Qty: | 6 |
| LED Connectors: | 3 Pin ARGB |
| Other Connectors: | 1 x 2 Pin Reset Switch, 1 x ARGB M/Board & 1 x 4 Pin (For SATA connection) |
| Powered Via : | SATA |
| RF Remote Controller: | |
| Unit Dimensions: | 39 x 7 x 85mm (W x H x D) |
| Net Weight: | 0.015 KGs |
| Connection: | RF |
| Working Temperature: | -30°C-55°C |
| Voltage Supply: | 5V-24V |
| Static Power Consumption: | 0.5W |
| Output Current: | 3 x 4A Peak / 3 x 2A Constant |
| Frequency: | 433.92MHz |
| Receiver Range: | 50FT (Line of Sight) |
| Manufacturer Part Number: | GMX HUB KIT |
| EAN Number: | 5055492408457 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: | 3 x GameMax Velocity Fans 1 x GameMax Viper LED Strip ARGB Hub RF Remote Controller Manual |
| Unit (Product) Dimensions (mm): | 95mm x 56mm x 15mm (W x H x D) |
| Packaging Dimensions (mm): | 123mm x 216mm x 80mm (W x H x D) |
| Net Weight (KGs): | 0.07 KGs |
| Gross Weight (KGs): | 0.59 KGs |
