Spark Gaming Cube

Dare To Win. Dare To Build.

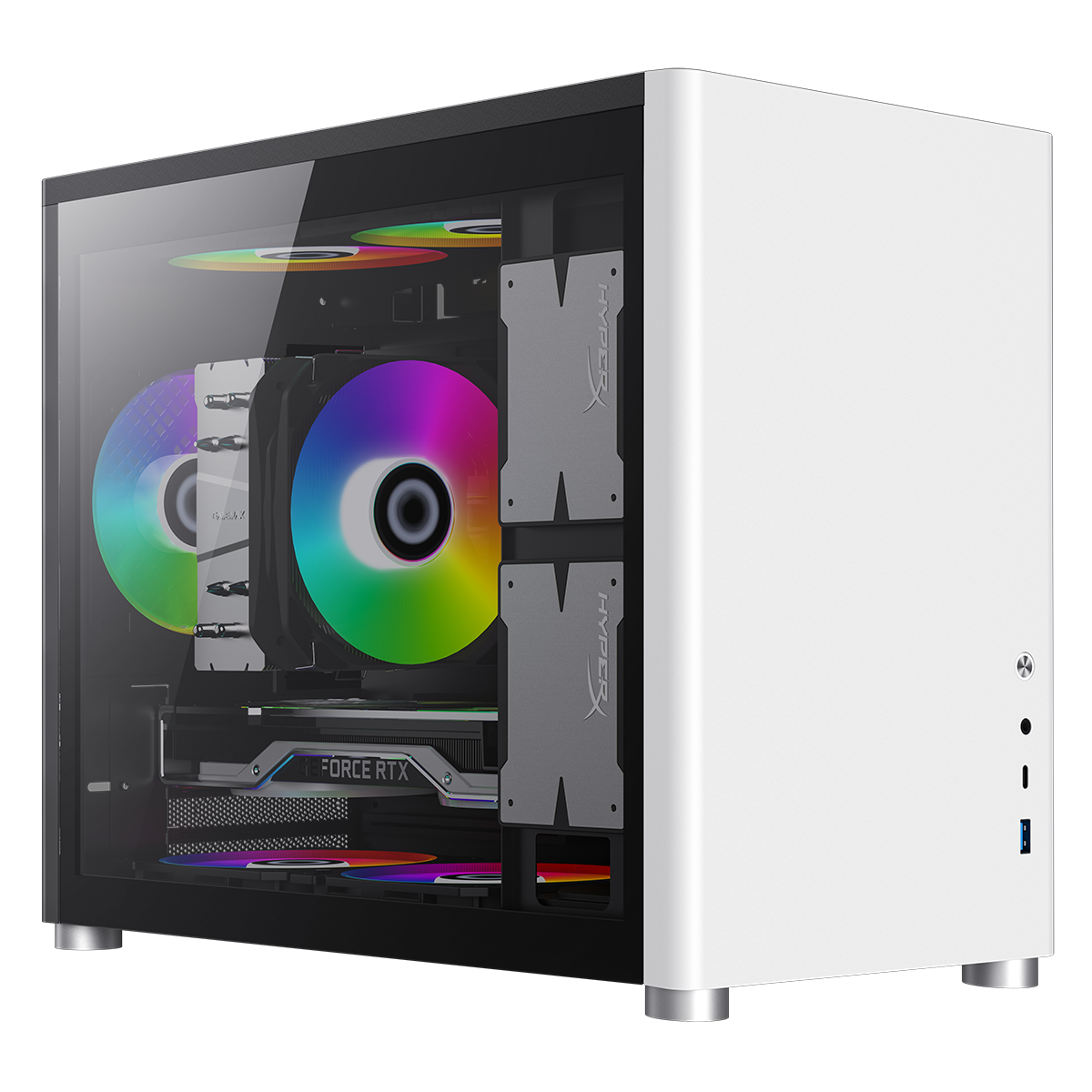

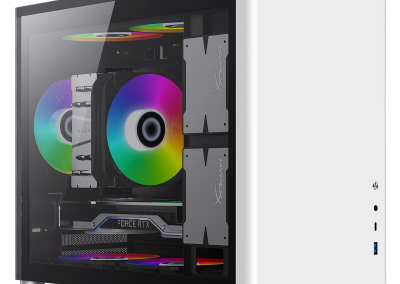

Spark White MATX Gaming Cube

Unlock your potential. GameMax have added the Spark a Small form factor gaming cube to its impressive line-up, using our years of experience, every detail from the material to the design has been carefully thought about creating an exquisite, simple, and versatile PC Gaming Rig.

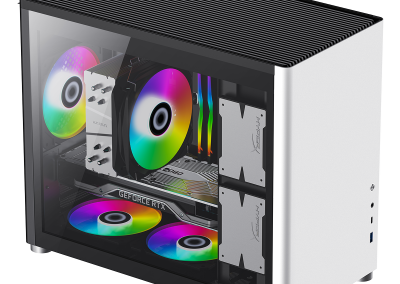

The Spark is available in two colours, black or white and is a Micro-ATX chassis with some huge features and some serious hardware support and is only small in size. There is room for a 400mm graphics card and a CPU Cooler of 170mm. Small in size with substantial airflow, the Spark provides a modular design for DTX, M-ATX or ITX motherboards.

Spark MATX Black Gaming Cube

Unlock your potential. GameMax have added the Spark a Small form factor gaming cube to its impressive line-up, using our years of experience, every detail from the material to the design has been carefully thought about creating an exquisite, simple, and versatile PC Gaming Rig.

The Spark is available in two colours, black or white and is a Micro-ATX chassis with some huge features and some serious hardware support and is only small in size. There is room for a 400mm graphics card and a CPU Cooler of 170mm. Small in size with substantial airflow, the Spark provides a modular design for DTX, M-ATX or ITX motherboards.

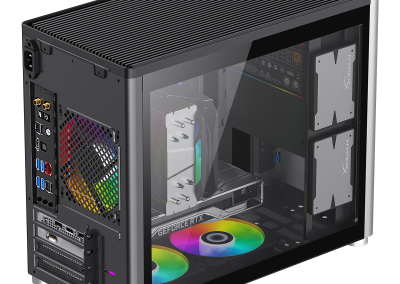

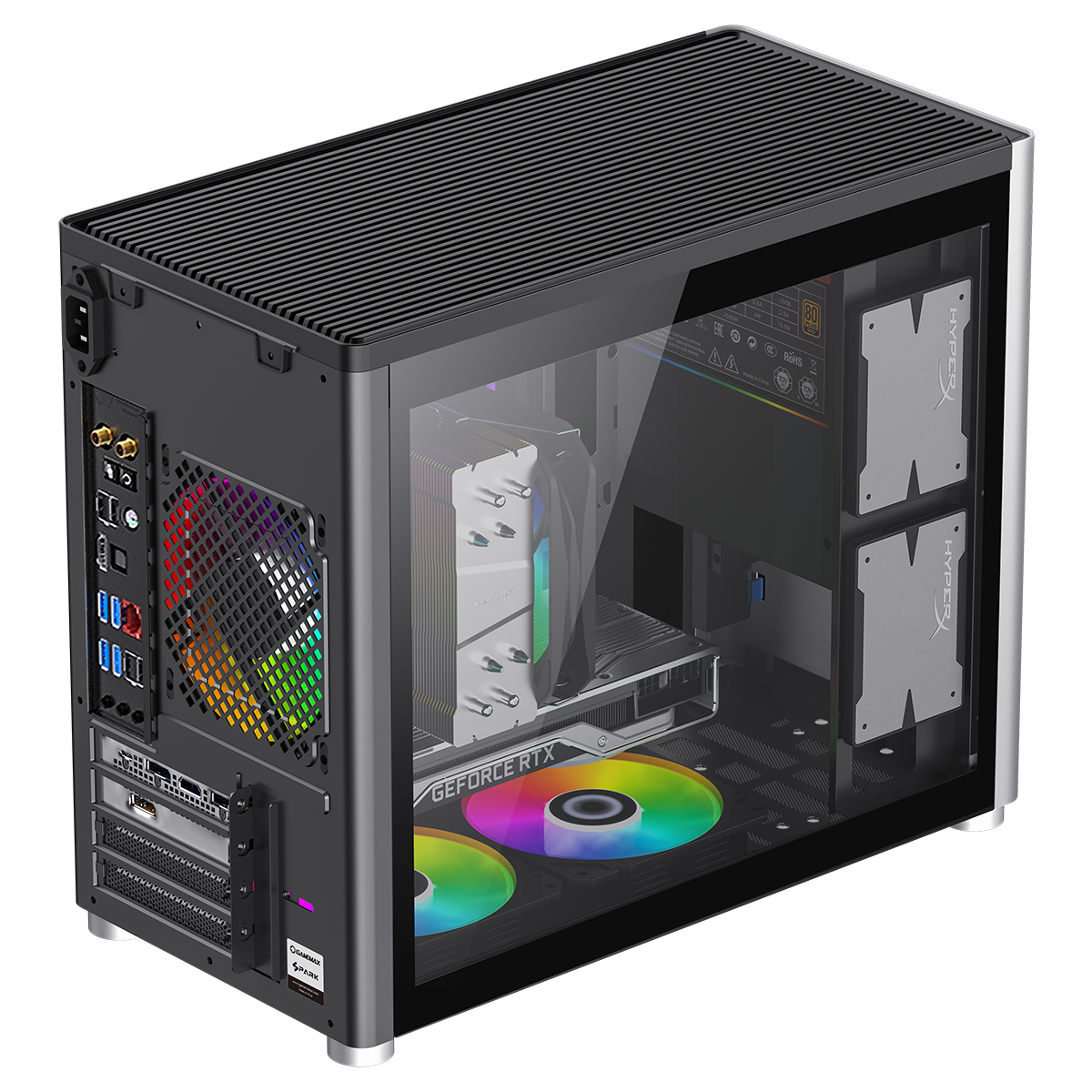

Being all about the air the Spark features a vertical airflow design and thanks to the spacious interior it can accommodate six fans and multiple radiator positions to maximise the airflow.

There are dual tempered glass panels and the combination of an innovative and featured design makes the Spark the perfect choice for home or office usage.

Key Features

Professional Design – The GameMax Spark is available in two colour configurations, black or white with the interior painted in all Black and the front panel painted in either black or white adopts an all-metal and smooth textured front panel adding a neat finish to this highly impressive Micro-ATX chassis.

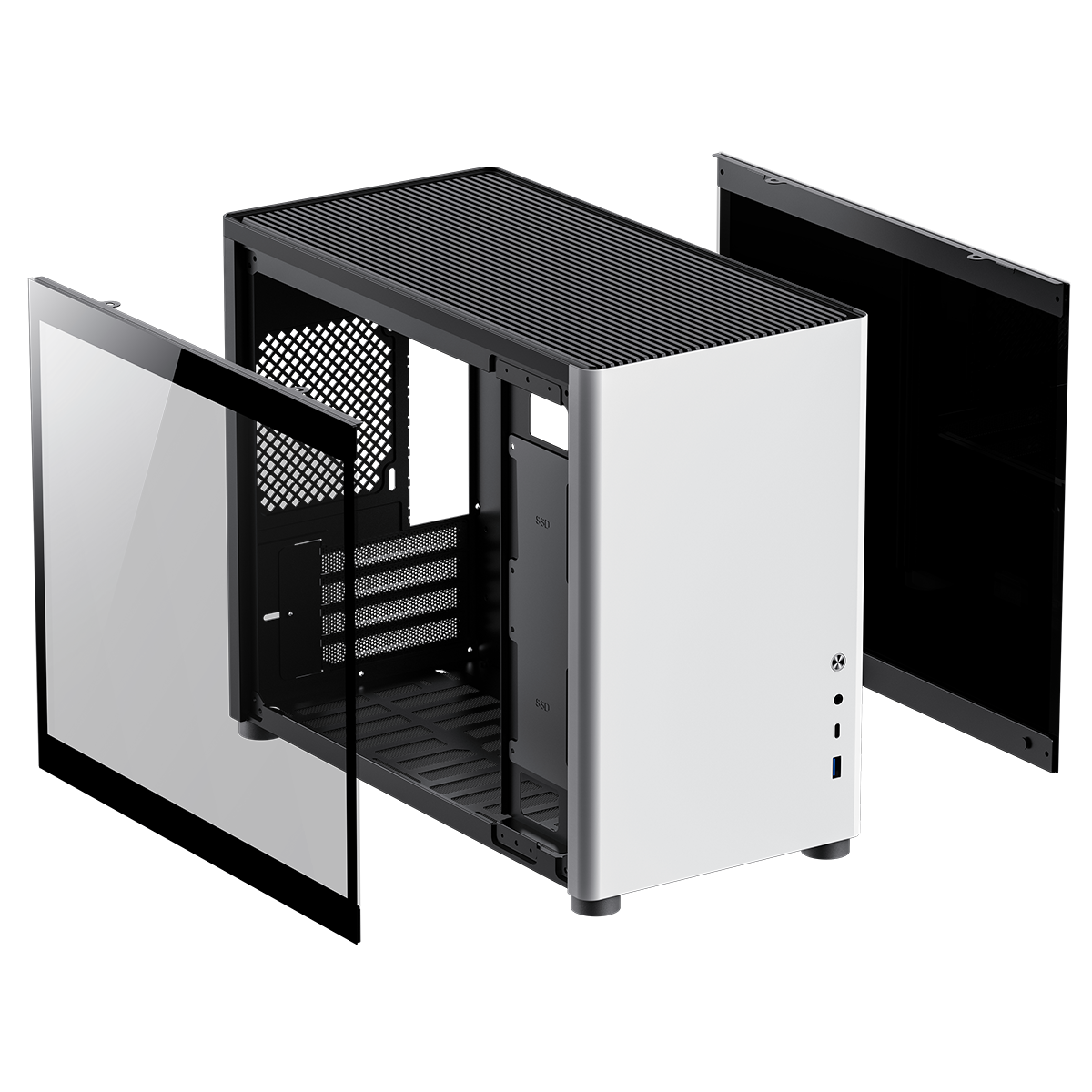

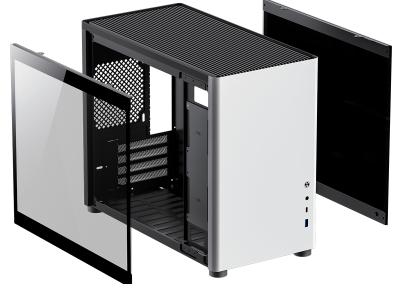

Two Tool-Less Tempered Glass Side Panels – Designed with dual 3mm tempered glass side panels with a clear transparent left-hand side ideal for showcasing your ARGB LED lighting and internal component construction and accompanied by a black tinted right hand side window adds elegance to the Spark.

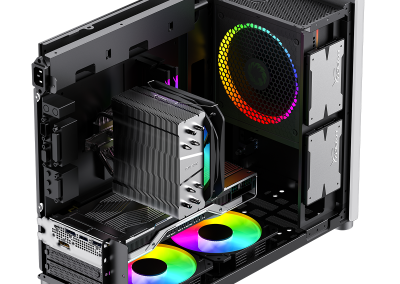

Modular Design – The modular designed chassis and vertical airflow design are two features that the Spark has included especially for its compact size with support for six 120mm fan positions – Top: Space for 2 x 120mm or 2 x 140mm, Bottom: Space for 3 x 120mm or 2 x 140mm & Rear: Space for 1 x 120mm and with the airflow blowing from the bottom up can quickly evaporate the warm air and cool the internal. The added fan locations at the bottom blow directly into the path of the GPU card, guarantees your PC will run to its maximum potential.

USB Type-C Port – For the first time on a GameMax chassis we have included a USB Type-C connection and have up to 10Gbps transfer speeds.

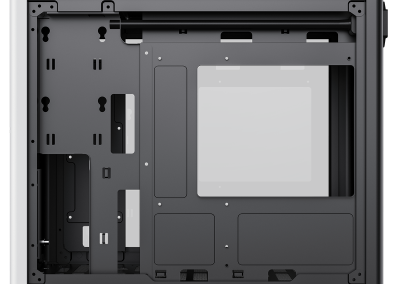

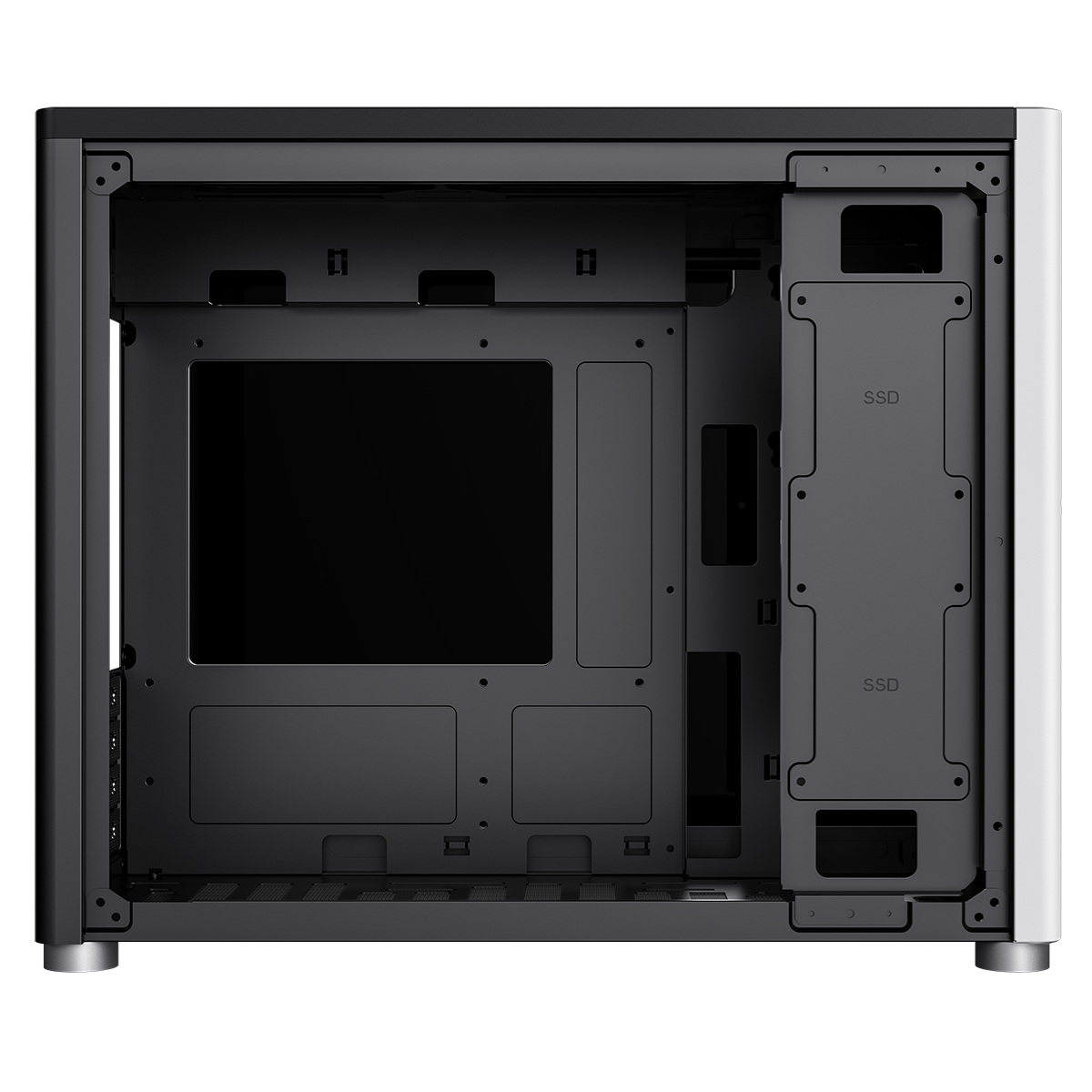

Cable Management Design – Optimise the rear cable management thanks to the main board plate design including 6 x cable routing holes for cabling which allows you to connect your cables easily and conveniently from a position to correspond to your hardware components. A hidden storage space is also included on the back panel to facilitate storage of the top fan wire and part of your power cord, makes the overall interior of your PC neat and tidy.

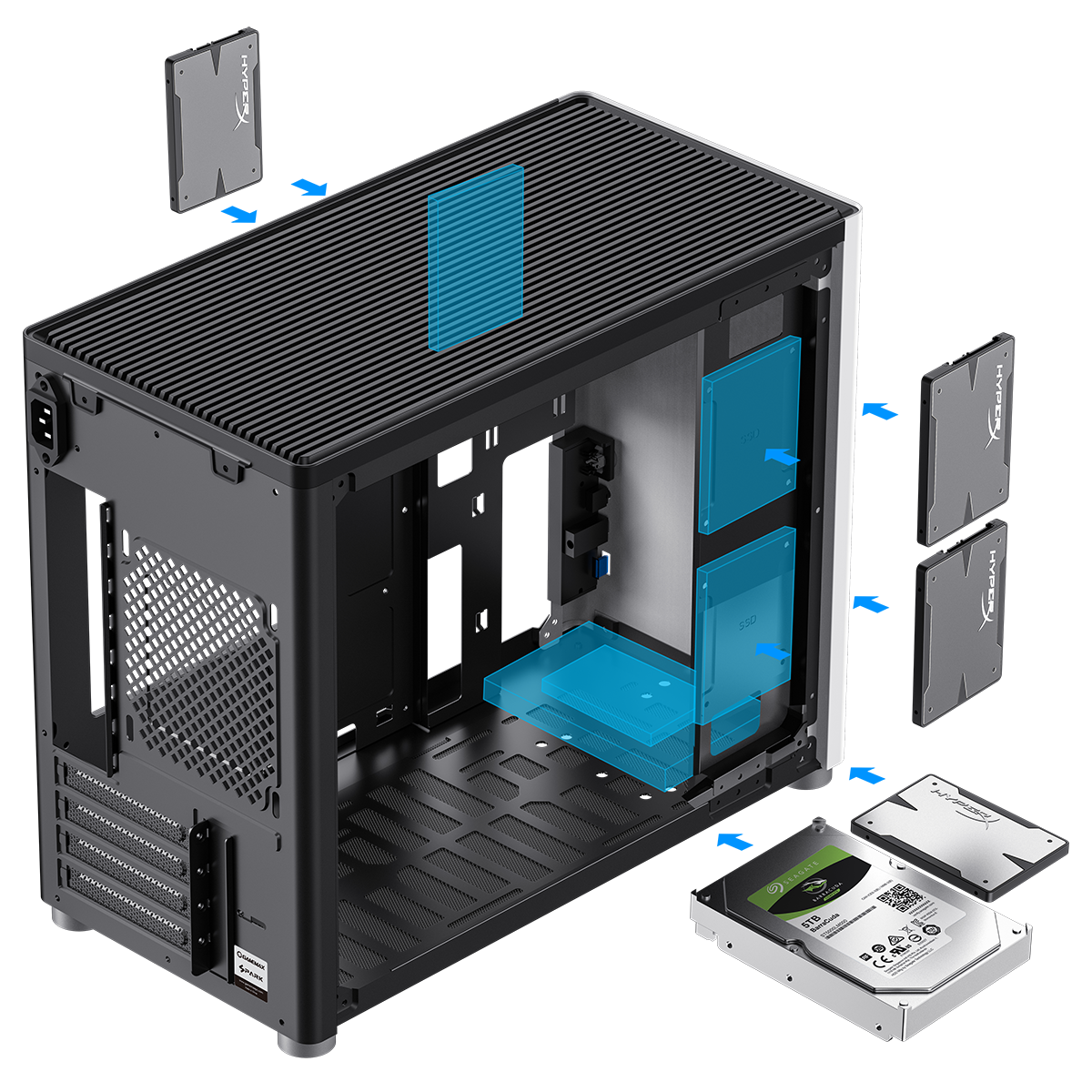

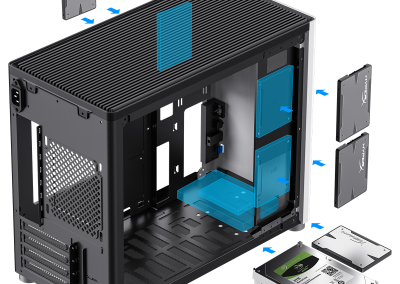

Hard Drive Devices – Use the Spark in a gaming, home, or office environment thanks to the plenty of storage space that has been provided with support for 3 x SSDs & 1 x HDD or 4 x SSDs. Please note that 1 x 2.5″ SSD & 1 x 3.5″ HDD share the 120mm bottom right fan position and if the fan is installed only 3 x SSD drives can be installed.

Dust Filters – Both the top and bottom are equipped with dust filters, and they cover the full area which keeps all the unnecessaries out of your chassis and help keeps it clean and running to its maximum, the top dust filter can be removed for added heat dissipation which adds to the beauty and functionality of the Spark.

Specifications

Chassis Dimensions (Excluding Fascia / Panels): (W) 203 x (H) 325 x (D) 401mm
Packaging Type: EPE Foam
EPE Foam Thickness: 28.32mm
Body Material: 0.8mm SPCC Exterior / 0.6mm SPCC Interior / 3mm TG Sides
Motherboard Support: Mini-ITX (17cm x 17cm), DTX (20.3 x 24.5cm) and Micro-ATX (24.5 x 24.5cm)
PSU max. Length (mm): 210mm
Water Cooling Positions:
Top: 120mm
Bottom: 120mm / 240mm / 280mm
Rear: 120mm

Case Specifications

Form Factor: Micro ATX
Motherboard Support: Micro ATX, Mini ITX
PSU Support: Standard ATX
PSU Location: Front
Gaming Case: Yes
Water Cooling: Water Cooling Ready!
Supported Radiator Size: 280mm
Supported Radiator Positions: Top
Body Material: 0.8mm
Front Bezel Material: Metal
Side Panel: 3mm Tempered Glass
Internal Cable Management Depth: 20mm
External Bays:
Internal Bays: 1 x 3.5” Internal
4 x 2.5” Internal
Drive Bay Notes: 1 x 2.5 SSD and 1 x 3.5 HDD share bottom right fan position
Expansion Slots: 4 x Full Size



Cooling Front: None
Cooling Top: Space For 2 x 120mm or 2 x 140mm Fans
Cooling Rear: Space For 1 x 120mm Fan
Cooling Side: None
Cooling Bottom: Space For 3 x 120mm or 2 x 140mm Fans
IO Ports: 1 x USB 3.1 Type C
1 x USB 3.0
1 x HD Audio
1 x Microphone
GPU Max Length: 400mm
CPU Cooler Maximum Height: 170mm
Front Bezel Colour: White
Body Colour: Black
System Cabinet Features:
PSU Included: No

General Specifications

Manufacturer Part Number: GMX-SPARKWHT
EAN Number: 6931858775281
Has Mains Plug: No
Colour: Black / White
What’s In The Box: Case
Screw Pack

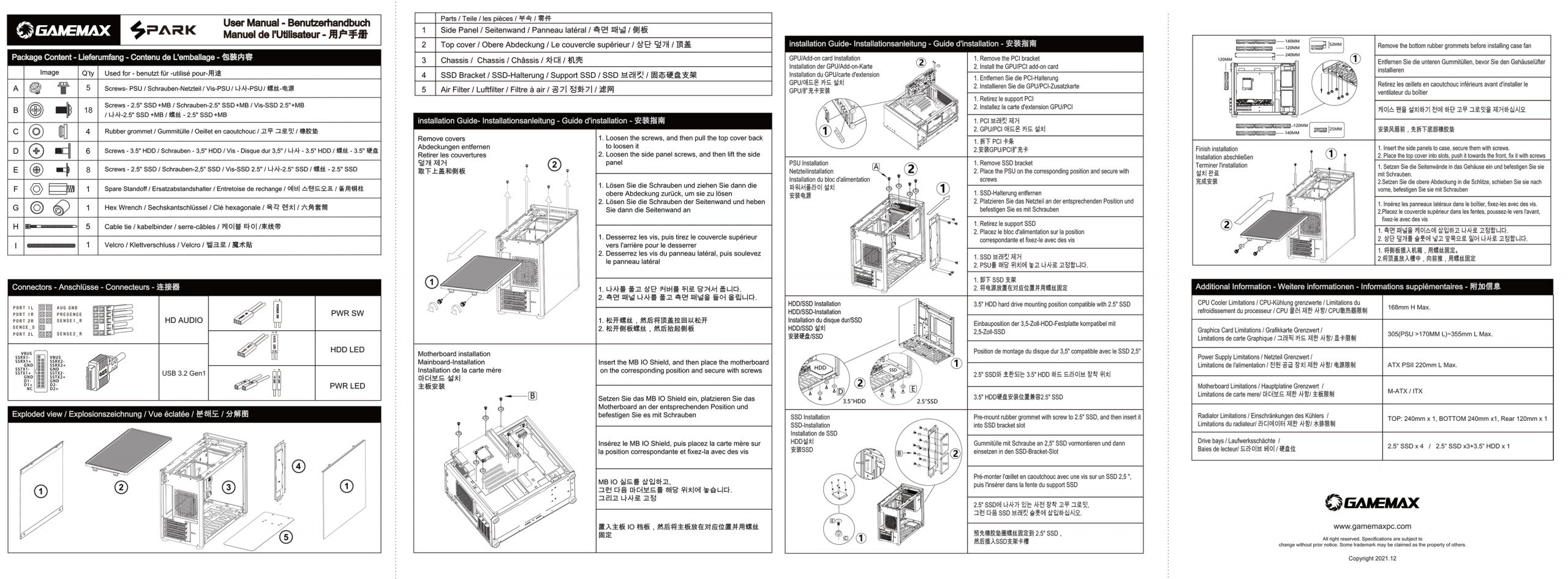

Manual
Unit (Product) Dimensions (mm): 203mm x 325mm x 401mm (W x H x D)
Packaging Dimensions (mm): 283mm x 402mm x 470mm (W x H x D)
Net Weight (KGs): 4.5 KGs
Gross Weight (KGs): 5.5 KGs
