Trooper ARGB PC Gaming Case
Dare To Win. Dare To Build.
Trooper 3x ARGB Fans Hub TG Side Window
The GameMax Trooper ARGB Mid-Tower gaming case is made with an easy to build in chassis design, a well built and clean looking fascia the Trooper is the perfect mix of looks and functionality. A honeycomb pattern backed by a dust filter on the right side of the case means you can mount a radiator or individual fans for an extra boost in cooling. The Trooper includes two ARGB LED strips, two running down either side of the chassis creating a stunning final build.
Packed full of cooling configuration options the Trooper has room to fit nine fans in total with three GameMax Razor ARGB Fans pre-installed to offer instant system cooling right out of the box.
Trooper ARGB Tempered Glass Gaming Case
The GameMax Trooper ARGB Mid-Tower gaming case is made with an easy to build in chassis design, a well built and clean looking fascia the Trooper is the perfect mix of looks and functionality. A honeycomb pattern backed by a dust filter on the right side of the case means you can mount a radiator or individual fans for an extra boost in cooling. The Trooper includes two ARGB LED strips, two running down either side of the chassis creating a stunning final build.
Packed full of cooling configuration options the Trooper has room to fit nine fans in total with three GameMax Razor ARGB Fans pre-installed to offer instant system cooling right out of the box.
Sync your cooling fans and LED Strips using the included hub and with one master 3-Pin ARGB motherboard connector. As well as motherboard control, you can also use the reset button on the I/O panel to control your fans and LED. Please note the included hub supports a total of 6 fans.
Located on top of the Trooper are two USB3.0 ports and HD Audio / Mic jack ports.
In line with the GameMax ethos this case offers style, performance and the ultimate experience for a great price.
Compatible with the Following Fans
The GameMax Trooper is compatible with the following fans:
GameMax Mirage Dual-Ring Rainbow RGB 120mm Fan
GameMax Mirage White Fins Dual-Ring Rainbow RGB 120mm Fan
GameMax Razor 120mm Rainbow ARGB Fan
GameMax Razor Extreme 120mm Rainbow ARGB Fan
GameMax Velocity 120mm Rainbow ARGB Fan
Compatible with the Following Hub
The GameMax Trooper is compatible with the following hub:
Key Features
Designed Using Tempered Glass – On the new version of the Commando TG we have added a four millimetre tempered glass front panel ensuring the ambient lighting coming from your ARGB fans shines through and a more detailed view of the ARGB fans in action.
Airflow – Four fans comes standard with the Commando TG and the chassis can mount another two fans (2 x 120mm or 2 x 140mm at the top) to help create the perfect balance of air running in and out of your system. Air vents run down either side of the front panel help to aid airflow.
Motherboard Sync – You can now take your LED colour to new heights and sync not only your fans but other ARGB components with the included ARGB motherboard connector, simply connect to a 5V 3 Pin RGB connection and you can use the mobo software to sync your components your way.
ARGB Hub Included – The Commando TG provides you with two different opportunities to control your LED lighting. Control your Razor Extreme fans manually, they include a 3 Pin power and 3 Pin AURA male and female connectors enables you to either control your lighting through the included hub and using the reset switch to change between the LED modes. The hub can connect to 6 x 3 Pin or 4 Pin fans with 6 x 3 Pin ARGB headers, the performance of the hub is excellent with a PWM function built in it makes it even easier to control your fan speed. Powered using a SATA connector ensures a safe and easy installation with reliable power.
Internal Components & Compatibility – Made using an all-black interior the Commando TG has plenty of space to fit higher- end hardware to boost the overall performance, with room to fit an MATX motherboard, with four PCI-e expansion slots, there is plenty of storage. A total of five hard drive bays can be mounted and graphic cards up to 365mm in length and a CPU cooler with a max. length of 170mm.
Full-Length PSU Shroud – Keep your build tidier by keeping power supply and other cables out of sight, making clean builds even easier to achieve.
Specifications
Chassis Dimensions (Excluding Fascia / Panels): | (W) 216 x (H) 487 x (D) 440mm |
Other Supported Radiator(s): | 240mm (Right Hand Side) |
Fan Controller Support: | |
Fan Controller Included: | Yes |
Fan Controller Power Via: | SATA Connector |
LED Controller: | Yes |
Fan Power Connector: | 4 Pin PWM |
LED Power Connector: | 3 Pin ARGB |
Fan Controller Power Via: | PWM |
Supported Qty of Fans (max.): | 6 |
Supported Qty of LED (max.): | 6 |
Connectors (Fans Included): | |
Fan Powered Via: | 3 Pin |
Fan LEDs Powered Via: | 3 Pin ARGB |
PSU max. Length (mm): | 200mm |
Packaging Type: | EPE Foam |
Packaging Thickness: | 29.00mm |
Case Specifications
Form Factor: | Midi Tower |
Motherboard Support: | ATX, Micro ATX, Mini ITX |
PSU Support: | Standard ATX |
PSU Location: | Bottom |
Gaming Case: | Yes |
Water Cooling: | Water Cooling Ready! Supported Radiator Size: 360mm Supported Radiator Positions: Front, Top |
Body Material: | 0.9mm SPCC |
Front Bezel Material: | ABS |
Side Panel: | Tempered Glass |
Internal Cable Management Depth: | 33mm |
External Bays: | |

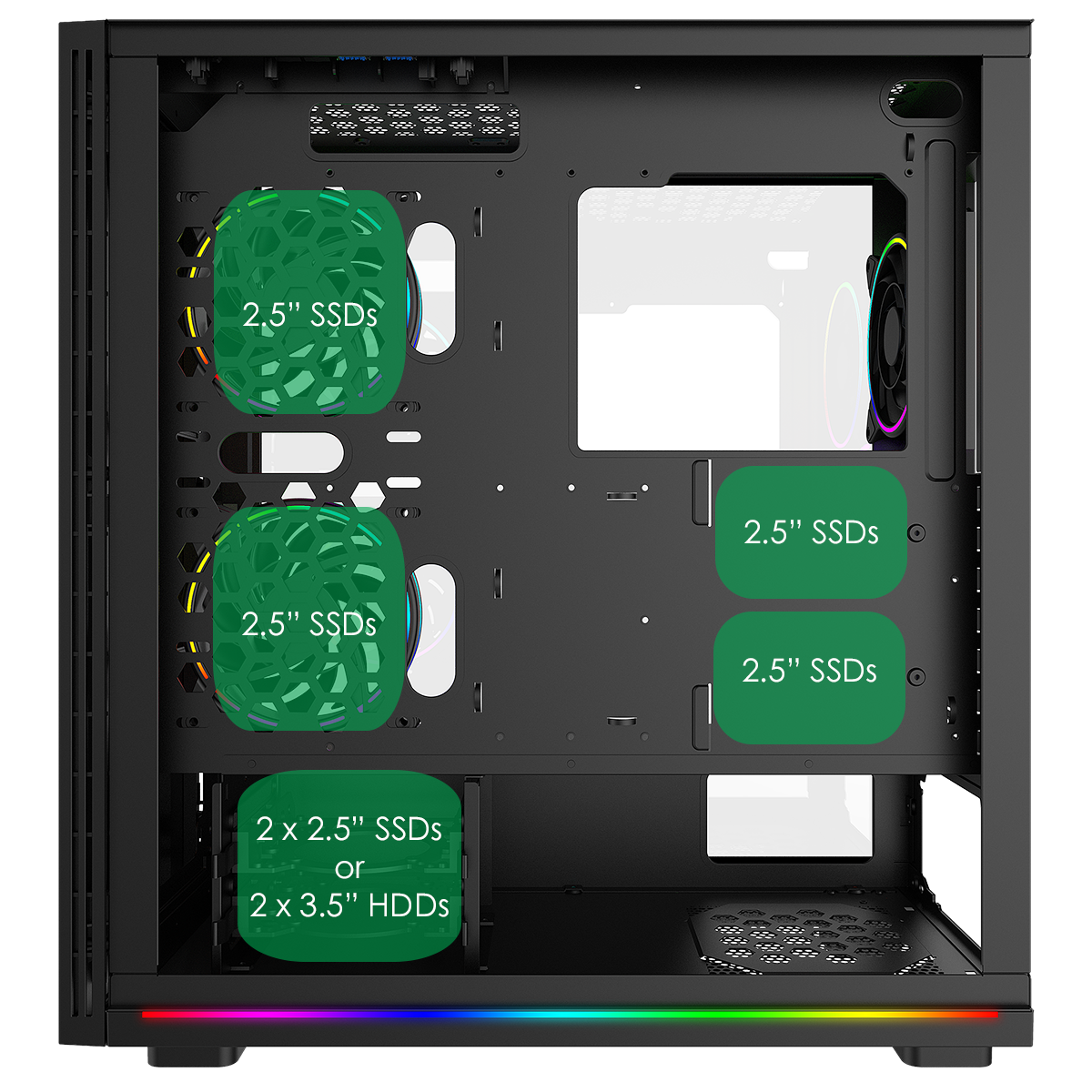

Internal Bays: | 2 x 3.5” Internal 6 x 2.5” Internal |
Drive Bay Notes: | 6 x 2.5″ SDDs (Without Fans Fitted On Side), 4 x 2.5″ SSDS (With Fans Fitted On Side) |
Expansion Slots: | 7 x Full Size |
Cooling Front: | Space For 3 x 120mm or 2 x 200mm Fans |
Cooling Top: | Space For 3 x 120mm or 2 x 140mm Fans |
Cooling Rear: | Space For 1 x 120mm Fan (1 x 120mm Game Max Razor Fan Included) |
Cooling Side: | Space For 2 x 120mm Fans (2 x 120mm Game Max Razor Fans Included) |
Cooling Bottom: | None |
Fan Controllers: | 1 Fan Controllers, controlling up to 6 fans in total |
IO Ports: | 2 x USB 3.0 1 x HD Audio 1 x Microphone |
GPU Max Length: | 430mm |
CPU Cooler Maximum Height: | 165mm |
Front Bezel Colour: | Black |
Body Colour: | Black |
System Cabinet Features: | |
PSU Included: | No |
General Specifications
Manufacturer Part Number: | GMX-TROOPER |
EAN Number: | 5055492409461 |
Has Mains Plug: | No |
Colour: | Black |
What’s In The Box: | Case RGB Controller (Installed) Screw Pack Manual |
Unit (Product) Dimensions (mm): | 216mm x 500mm x 462mm (W x H x D) |
Packaging Dimensions (mm): | 310mm x 547mm x 558mm (W x H x D) |
Net Weight (KGs): | 9.3 KGs |
Gross Weight (KGs): | 11.33 KGs |
