Commando TG ARGB PC Gaming Case
Dare To Win. Dare To Build.
Commando TG ARGB MATX Gaming Case 1 x Side Window 4 x ARGB Hub Fan
The GameMax Commando TG is the third chassis to be released of the excellent Commando series. We have now added a 4mm tempered glass front panel along with increasing the fan capacity to four ARGB fans creating a vibrant ARGB atmosphere and an attractive display of your internal components.
For a Micro-ATX chassis this case packs a punch and offers a great deal of functionality and features with room to mount six fans and four Razor Extreme fans included, the Commando TG has instant cooling straight out of the box.
Commando TG ARGB MATX Gaming Case
The GameMax Commando TG is the third chassis to be released of the excellent Commando series. We have now added a 4mm tempered glass front panel along with increasing the fan capacity to four ARGB fans creating a vibrant ARGB atmosphere and an attractive display of your internal components.
For a Micro-ATX chassis this case packs a punch and offers a great deal of functionality and features with room to mount six fans and four Razor Extreme fans included, the Commando TG has instant cooling straight out of the box.
The four pre-installed ARGB fans can be managed in two different ways either through the chassis thanks to the included controller. Capable of powering up to six fans and the performance of the hub is excellent with a PWM function built in, it makes it easier than ever to control your fan speed (non-PWM fans will run at full speed). Or customise your ARGB lighting using motherboard software and get a dominant ARGB lighting system.
The Commando features an ‘easy to build in ‘chassis and features two magnetic dust filters ensuring your components remain visible but without dust, also improving the performance.
In line with the GameMax ethos this case offers style, performance and the ultimate experience.
Compatible with the Following Fans
The GameMax Commando TG is compatible with the following fans:
GameMax Mirage Dual-Ring Rainbow RGB 120mm Fan
GameMax Mirage White Fins Dual-Ring Rainbow RGB 120mm Fan
GameMax Razor 120mm Rainbow ARGB Fan
GameMax Razor Extreme 120mm Rainbow ARGB Fan
GameMax Velocity 120mm Rainbow ARGB Fan
Compatible with the Following Hub
The GameMax Commando TG is compatible with the following hub:
Key Features

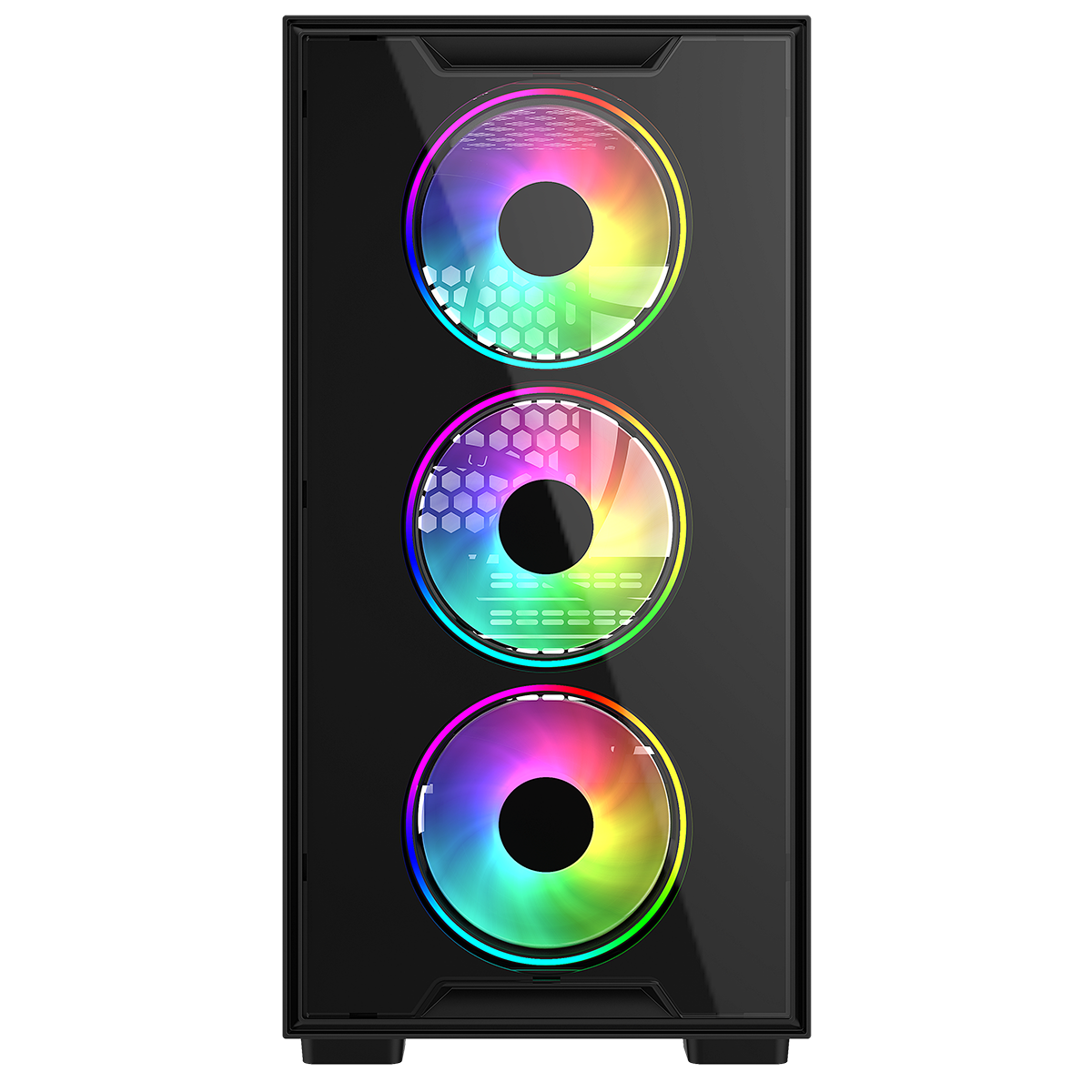

Designed Using Tempered Glass – On the new version of the Commando TG we have added a four millimetre tempered glass front panel ensuring the ambient lighting coming from your ARGB fans shines through and a more detailed view of the ARGB fans in action.
Airflow – Four fans comes standard with the Commando TG and the chassis can mount another two fans (2 x 120mm or 2 x 140mm at the top) to help create the perfect balance of air running in and out of your system. Air vents run down either side of the front panel help to aid airflow.
Motherboard Sync – You can now take your LED colour to new heights and sync not only your fans but other ARGB components with the included ARGB motherboard connector, simply connect to a 5V 3 Pin RGB connection and you can use the mobo software to sync your components your way.

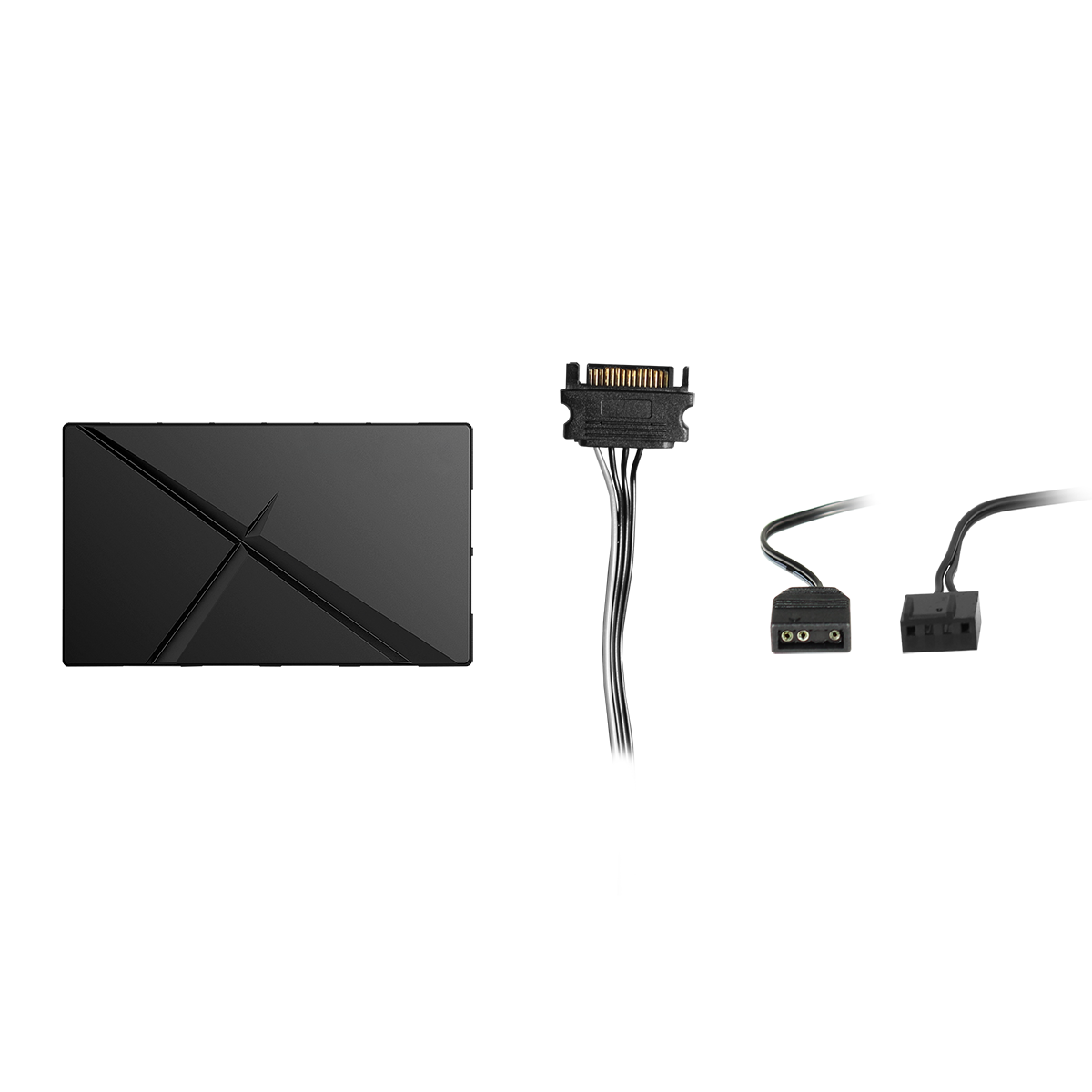

ARGB Hub Included – The Commando TG provides you with two different opportunities to control your LED lighting. Control your Razor Extreme fans manually, they include a 3 Pin power and 3 Pin AURA male and female connectors enables you to either control your lighting through the included hub and using the reset switch to change between the LED modes. The hub can connect to 6 x 3 Pin or 4 Pin fans with 6 x 3 Pin ARGB headers, the performance of the hub is excellent with a PWM function built in it makes it even easier to control your fan speed. Powered using a SATA connector ensures a safe and easy installation with reliable power.

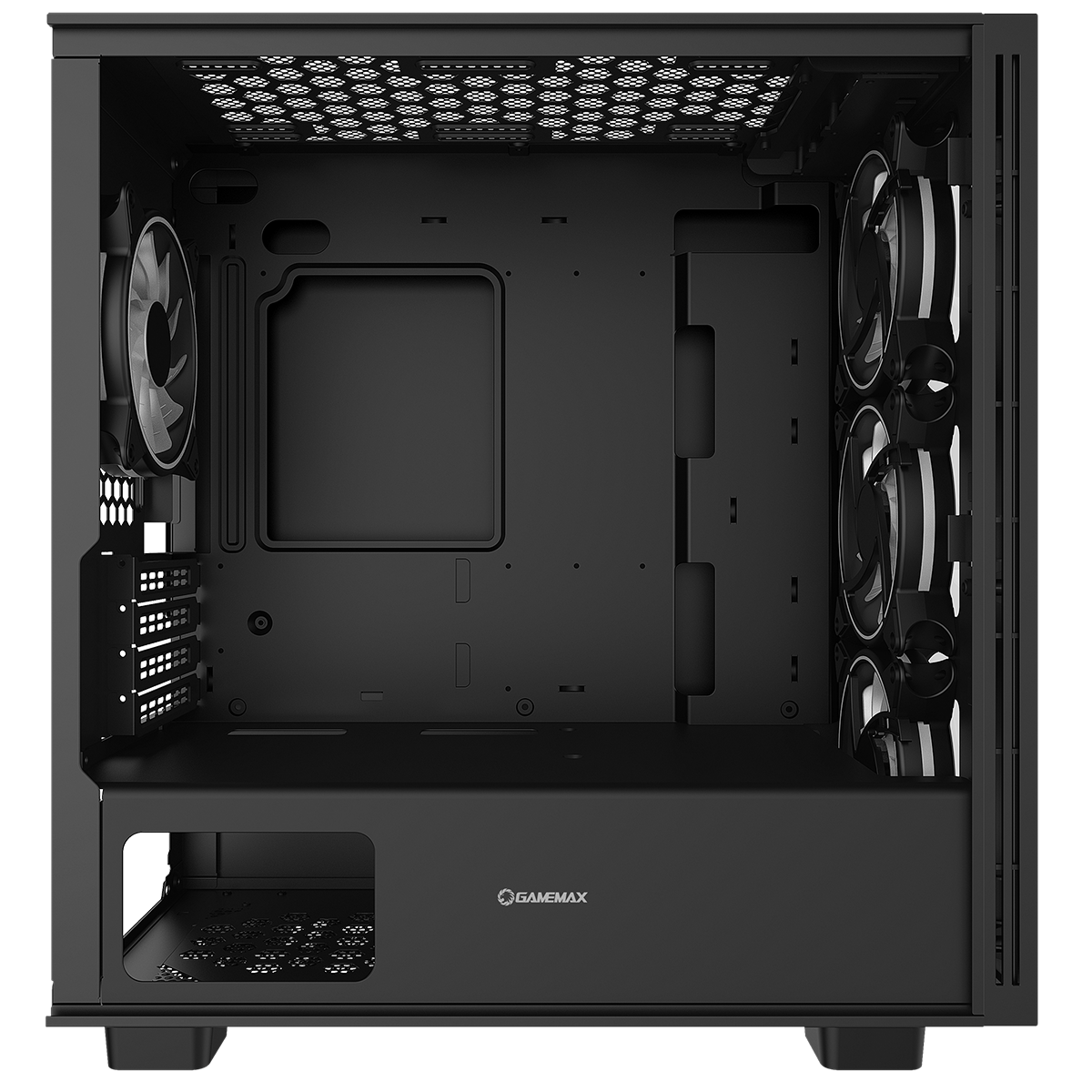

Internal Components & Compatibility – Made using an all-black interior the Commando TG has plenty of space to fit higher- end hardware to boost the overall performance, with room to fit an MATX motherboard, with four PCI-e expansion slots, there is plenty of storage. A total of five hard drive bays can be mounted and graphic cards up to 365mm in length and a CPU cooler with a max. length of 170mm.
Full-Length PSU Shroud – Keep your build tidier by keeping power supply and other cables out of sight, making clean builds even easier to achieve.
Specifications
Chassis Dimensions (Excluding Fascia / Panels): | (W) 210 x (H) 406 x (D) 374mm |
Fan Controller Support: | |
Fan Controller Power Via: | SATA Connector |
LED Controller: | Yes |
Fan Power Connector : | 4 Pin PWM Fan Connector |
LED Power Connector: | 3 Pin ARGB |
Fan Control Via: | 4 Pin PWM |
Supported Qty of Fans (max.): | 6 |
Supported Qty of LED (max.): | 6 |
Connectors (Razor Extreme Fans Included): | |
Fans Powered Via: | 3 Pin |
Fans LEDs Powered Via: | 3 Pin ARGB |
PSU max. Length (mm): | 150mm |
Packaging Type: | EPE Foam |
Packaging Thickness: | 18.73mm |
Case Specifications
Form Factor: | Micro ATX |
Motherboard Support: | Micro ATX, Mini ITX |
PSU Support: | Standard ATX |
PSU Location: | Bottom |
Gaming Case: | Yes |
Water Cooling: | Water Cooling Ready! Supported Radiator Size: 240mm Supported Radiator Positions: Front, Top |
Body Material: | SPCC 0.6mm |
Front Bezel Material: | ABS & 4mm Tempered Glass |
Side Panel: | 4mm Tempered Glass |
Internal Cable Management Depth: | 33mm |
External Bays: | |

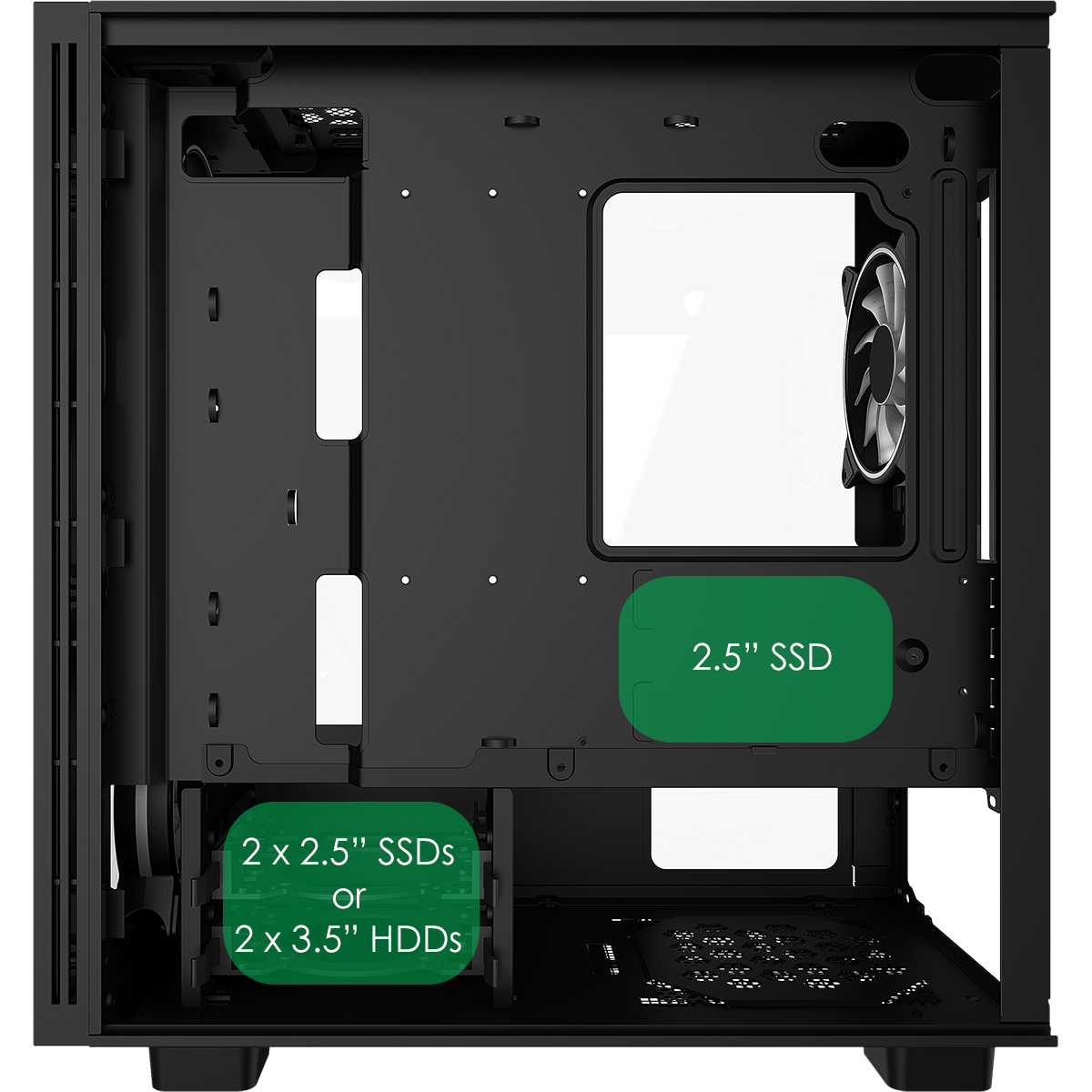

Internal Bays: | 2 x 3.5” Internal 3 x 2.5” Internal |
Drive Bay Notes: | 2 x 2.5″ and 3.5″ Shared |
Expansion Slots: | 4 x Full Size |
Cooling Front: | Space For 3 x 120mm Fans (3 x 120mm GameMax Razor Extreme Fans Included) |
Cooling Top: | Space For 2 x 120mm or 2 x 140mm Fans |
Cooling Rear: | Space For 1 x 120mm Fan (1 x 120mm GameMax Razor Extreme Fan Included) |
Cooling Side: | None |
Cooling Bottom: | None |
Fan Controllers: | 1 Fan Controllers, controlling up to 6 fans in total |
IO Ports: | 1 x USB 3.0 2 x USB 2.0 1 x HD Audio 1 x Microphone |
GPU Max Length: | 365mm |
CPU Cooler Maximum Height: | 170mm |
Front Bezel Colour: | Black |
Body Colour: | Black |
System Cabinet Features: | |
PSU Included: | No |
General Specifications
Manufacturer Part Number: | GMX-COMMANDO-TG-BLK |
EAN Number: | 5055492409355 |
Has Mains Plug: | No |
Colour: | Black |
What’s In The Box: | Case Manual Screws |
Unit (Product) Dimensions (mm): | 210mm x 425mm x 397mm (W x H x D) |
Packaging Dimensions (mm): | 465mm x 290mm x 477mm (W x H x D) |
Net Weight (KGs): | 6.6 KGs |
Gross Weight (KGs): | 7.7 KGs |
