F15-G PC Gaming Case
Dare To Win. Dare To Build.
F15G A-RGB Mid-Tower Gaming Case Tempered Glass with MB Sync
The all new GameMax F15 Mid-Tower is a chassis designed to suit all builds. The F15 is available in two different styles with a tempered glass front panel or with a full mesh front panel.

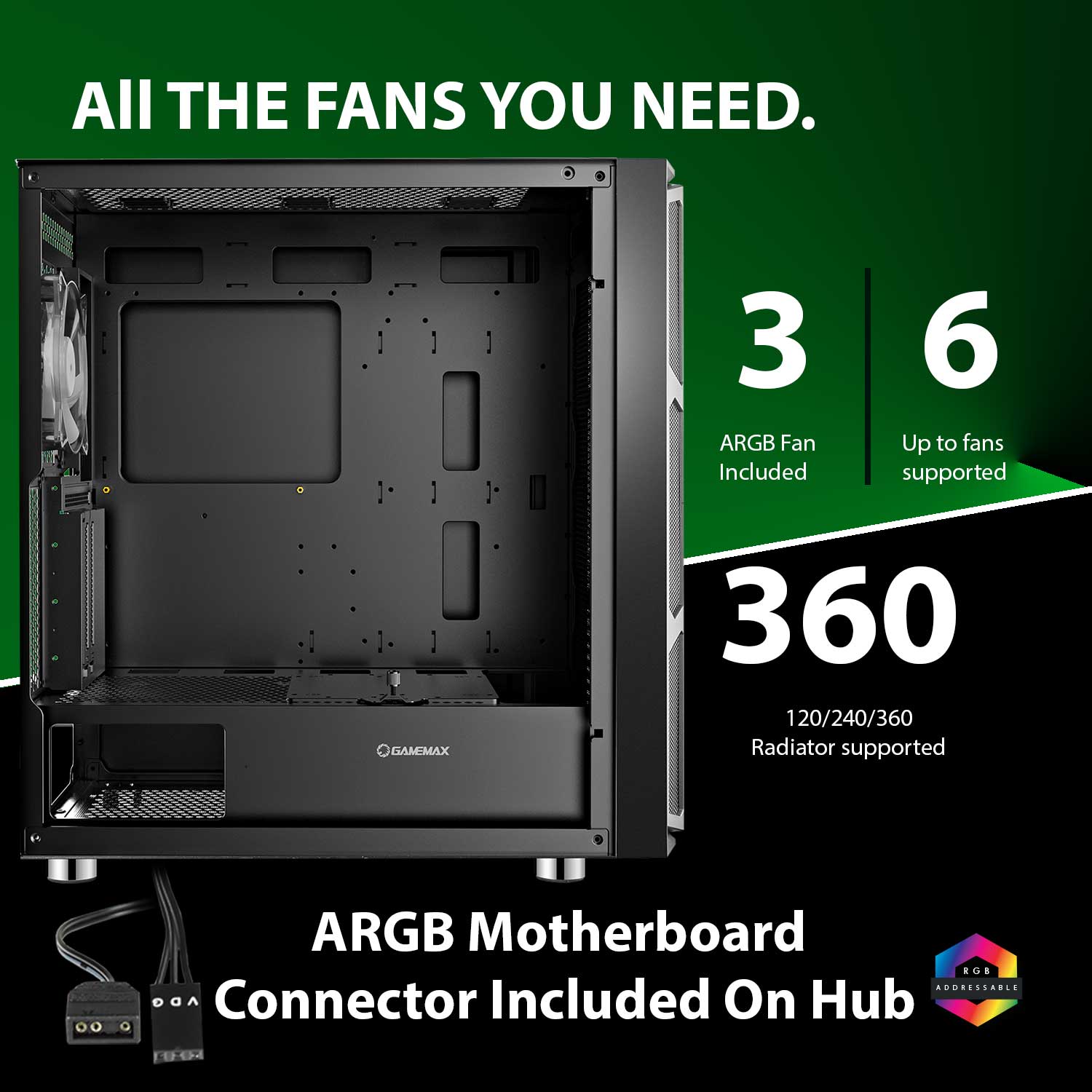

The F15 comes with exceptional cooling, included is 2 x 200mm ARGB fans at the front and 1 x 120mm ARGB fan at the back, with a further two fans been able to be fitted at the top of the chassis and on the PSU shroud.
F15G A-RGB Tempered Glass Gaming Case
The all new GameMax F15 Mid-Tower is a chassis designed to suit all builds. The F15 is available in two different styles with a tempered glass front panel or with a full mesh front panel.
The F15 comes with exceptional cooling, included is 2 x 200mm ARGB fans at the front and 1 x 120mm ARGB fan at the back, with a further two fans been able to be fitted at the top of the chassis and on the PSU shroud.
You can connect all your fans to the pre-installed ARGB hub allowing for stunning lighting effects and an easily sync any further fans you choose to mount. You can also sync all fans to a compatible motherboard using the included 3 Pin AURA and VDG connectors. Please note the hub can connect only six fans.

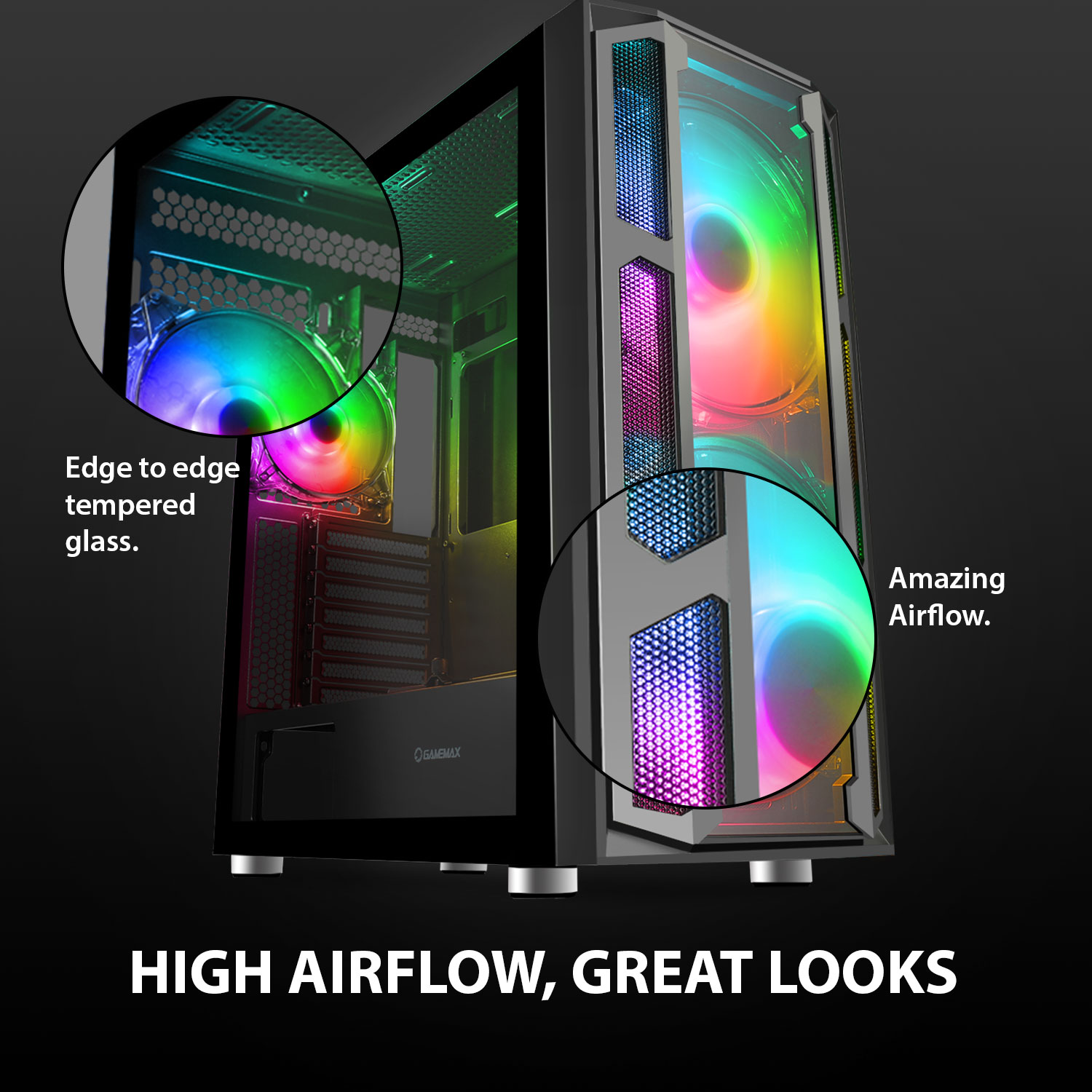

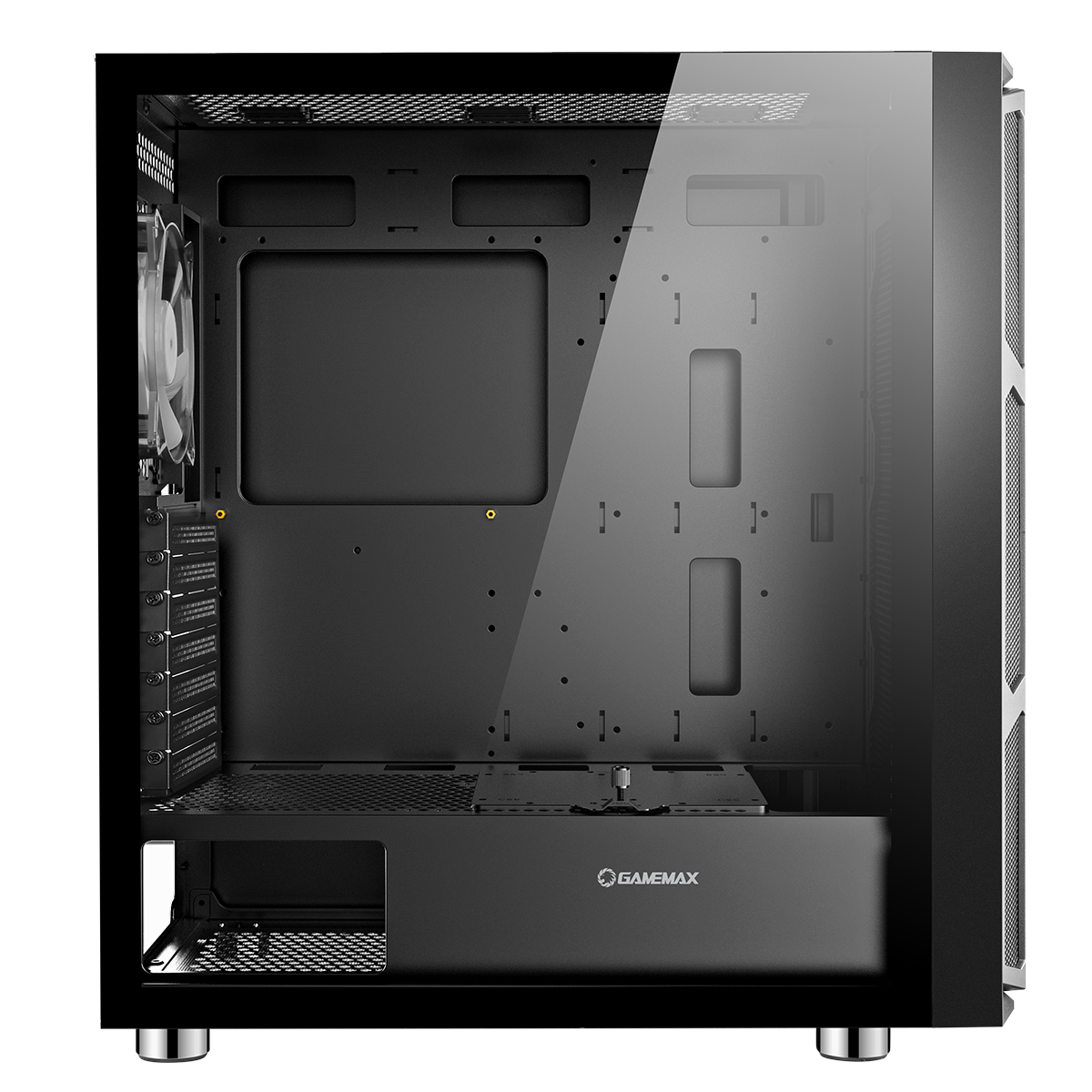

The left side panel is made of 4mm tempered glass allowing the user to show off their internal components and show off the light coming from the 3 ARGB fans.

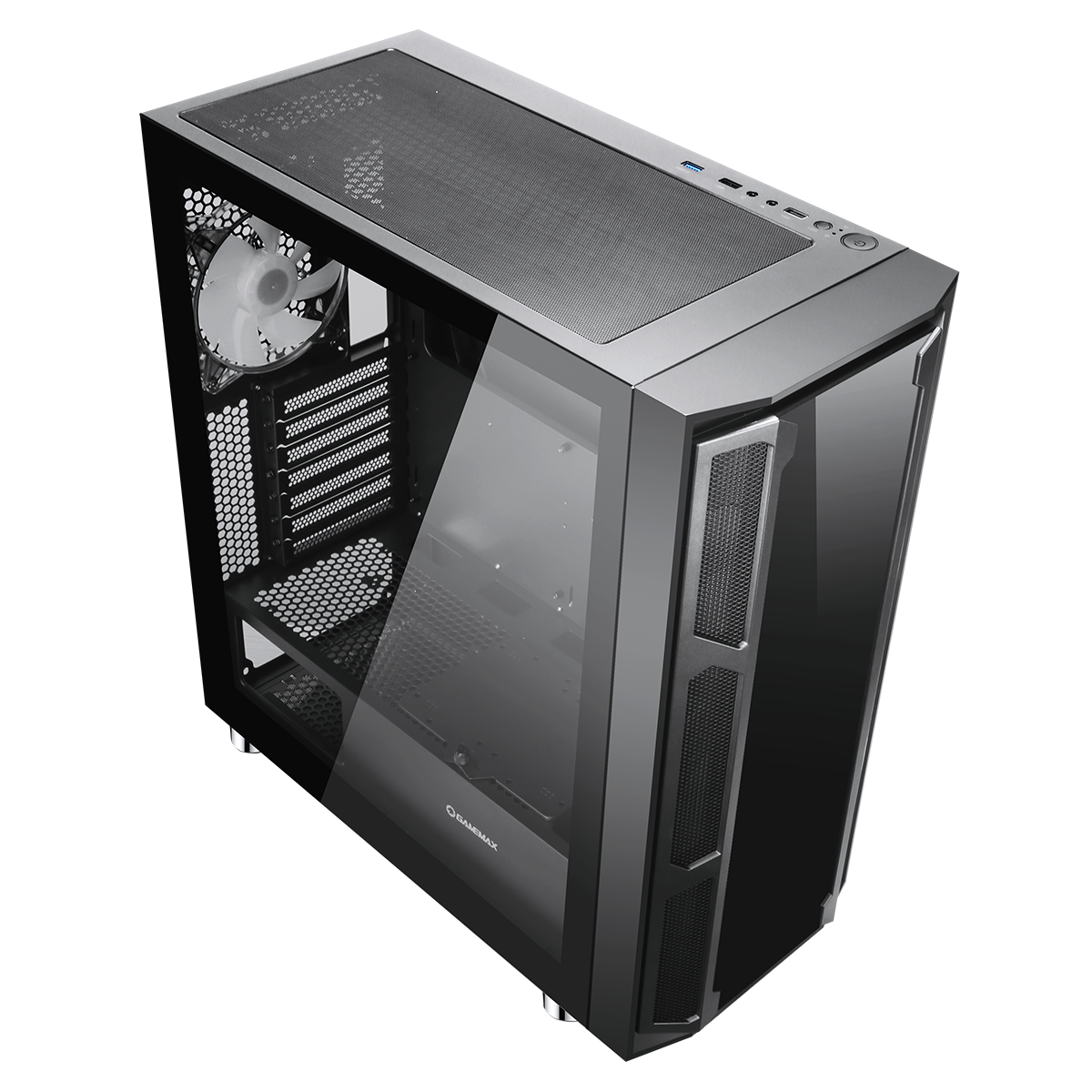

The I\O panel located on the top gives you easy access to the 1 x USB3.0, 2 x USB2.0 and HD Audio (Headphone and Microphone), allowing for connection to a variety of different devices. The chassis supports GPUs with a max. length of 365mm and CPU coolers with a max. height of 165mm.
In line with the GameMax ethos this case offers style, performance and the ultimate experience.
The GameMax F15 is compatible with the following fans:
GameMax Mirage Dual-Ring Rainbow RGB 120mm Fan
GameMax Mirage White Fins Dual-Ring Rainbow RGB 120mm Fan
GameMax Razor 120mm Rainbow ARGB Fan
GameMax Velocity 120mm Rainbow ARGB Fan
Compatible with the Following Hubs
The GameMax F15 is compatible with the following hubs:
Key Features
F15 Range – The F15 is available in either a tempered glass or mesh option. The tempered glass front panel enables the perfect blend between aesthetics and performance, or the F15 is available with a full mesh front panel enabling direct airflow.
Motherboard Sync – You can now take your colour customisation to new levels with the included ARGB motherboard connector, simply connect the 3 Pin to a compatible motherboard and you can use the mobo software to sync your fans the way you like.
ARGB Hub – The F15 comes with a hub included and can connect to 6, 3 Pin or 4 Pin fans, from the hub you can control the colour mode, fan speed and LED speed. The hub comes with an AURA and VDG connection. Compatible with ASUS, MSI and Gigabyte RGB Fusion.
RF Remote Controller – As well as been able to control your fans from your chassis using the built in hub and 3 Pin AURA connector, you can control your fan speed, LED speed or colour mode without any fuss using the RF (radio frequency) remote control. Using the remote control gives you easy access to 5 pre-programmed colour modes and several different colour modes.
Water-Cooling Support – The front supports a 360mm radiator, a 240mm radiator can be mounted at the top and on the PSU shroud and a 120mm at the back of the case.
Tempered Glass – A full left side tempered glass panel has been included allowing the user to show off their build and the glow from the ARGB fans.
Vertical & Horizontal GPU – The F15 offers vertical or horizontal graphics card mounting, allowing you to be flexible and adjust your build to suit your needs.
Specifications
Chassis Dimensions (Excluding Fascia / Panels): | (W) 215 x (H) 465 x (D) 401mm |
Fan Controller Support: | |
Fan Controller Power Via: | SATA Connector |
LED Controller: | Yes – LED button |
Fan Power Connector : | 3 Pin Fan Connector |
LED Power Connector: | 3 Pin ARGB |
Fan Control Via: | PWM, Remote & Hub |
Supported Qty of Fans (max.): | 6 |
Supported Qty of LED (max.): | 6 |
Connectors (Fan Included): | |
Fans Powered Via: | 3 Pin |
Fans LEDs Powered Via: | 3 Pin ARGB |
PSU max. Length (mm): | 215mm |
Packaging Type: | EPE Foam |
Packaging Thickness: | 49.26mm |
Case Specifications
Form Factor: | Midi Tower |
Motherboard Support: | ATX, Micro ATX, Extended ATX, Mini ITX |
PSU Support: | Standard ATX |
PSU Location: | Bottom |
Gaming Case: | Yes |
Water Cooling: | Water Cooling Ready! Supported Radiator Size: 360mm Supported Radiator Positions: Front, Top |
Body Material: | 0.8mm SPCC |
Front Bezel Material: | ABS, Mesh & Tempered Glass |
Side Panel: | Tempered Glass |
Internal Cable Management Depth: | 29mm |
External Bays: | |

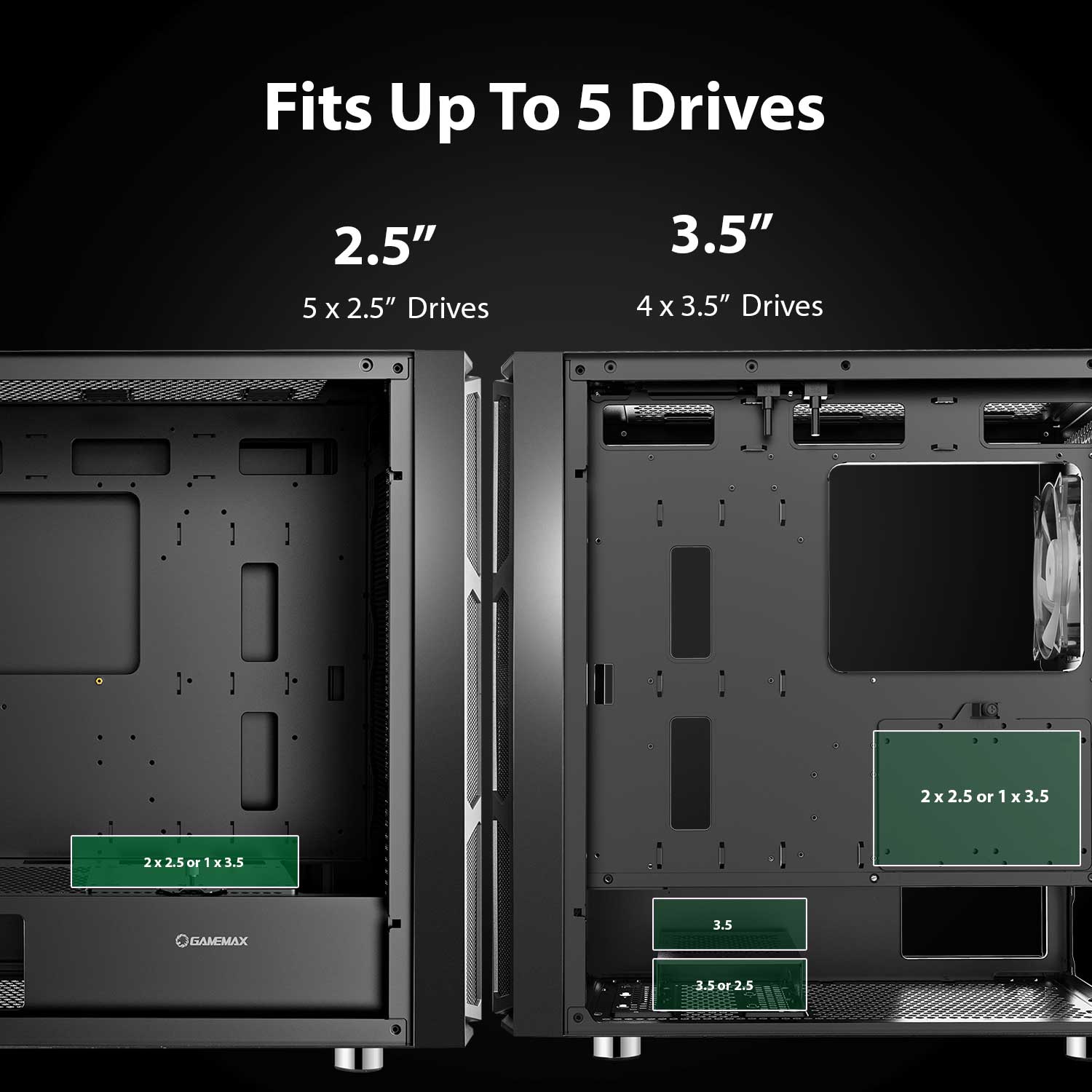

Internal Bays: | 4 x 3.5” Internal 5 x 2.5” Internal |
Drive Bay Notes: | 1 x 3.5″ or 2 x 2.5″ on PSU shroud and 1 x 2.5″ or 1 x 3.5″ on top of cage |
Expansion Slots: | 7 x Full Size |
Cooling Front: | Space For 3 x 120mm or 2 x 200mm Fans (2 x 200mm ARGB Fans Included) |
Cooling Top: | Space For 2 x 120mm or 2 x 140mm Fans |
Cooling Rear: | Space For 1 x 120mm Fan (1 x 120mm ARGB Fan Included) |
Cooling Side: | None |
Cooling Bottom: | Space For 2 x 120mm Fans |
Fan Controllers: | 1 Fan Controllers, controlling up to 6 fans in total |
IO Ports: | 1 x USB 3.0 2 x USB 2.0 1 x HD Audio 1 x Microphone |
GPU Max Length: | 365mm |
CPU Cooler Maximum Height: | 165mm |
Front Bezel Colour: | Black |
Body Colour: | Black |
System Cabinet Features: | |
PSU Included: | No |
General Specifications
Manufacturer Part Number: | F15G |
EAN Number: | 5055492408747 |
Has Mains Plug: | No |
Colour: | Black |
What’s In The Box: | Case Accessory Pack Vertical PCI-e bracket |
Unit (Product) Dimensions (mm): | 215mm x 483mm x 461mm (W x H x D) |
Packaging Dimensions (mm): | 316mm x 573mm x 541mm (W x H x D) |
Net Weight (KGs): | 8.6 KGs |
Gross Weight (KGs): | 10.8 KGs |
