Abyss Full Tower PC Gaming Case

Dare To Win. Dare To Build.

Abyss A-RGB Full Tower Gaming Case Tempered Glass with MB Sync

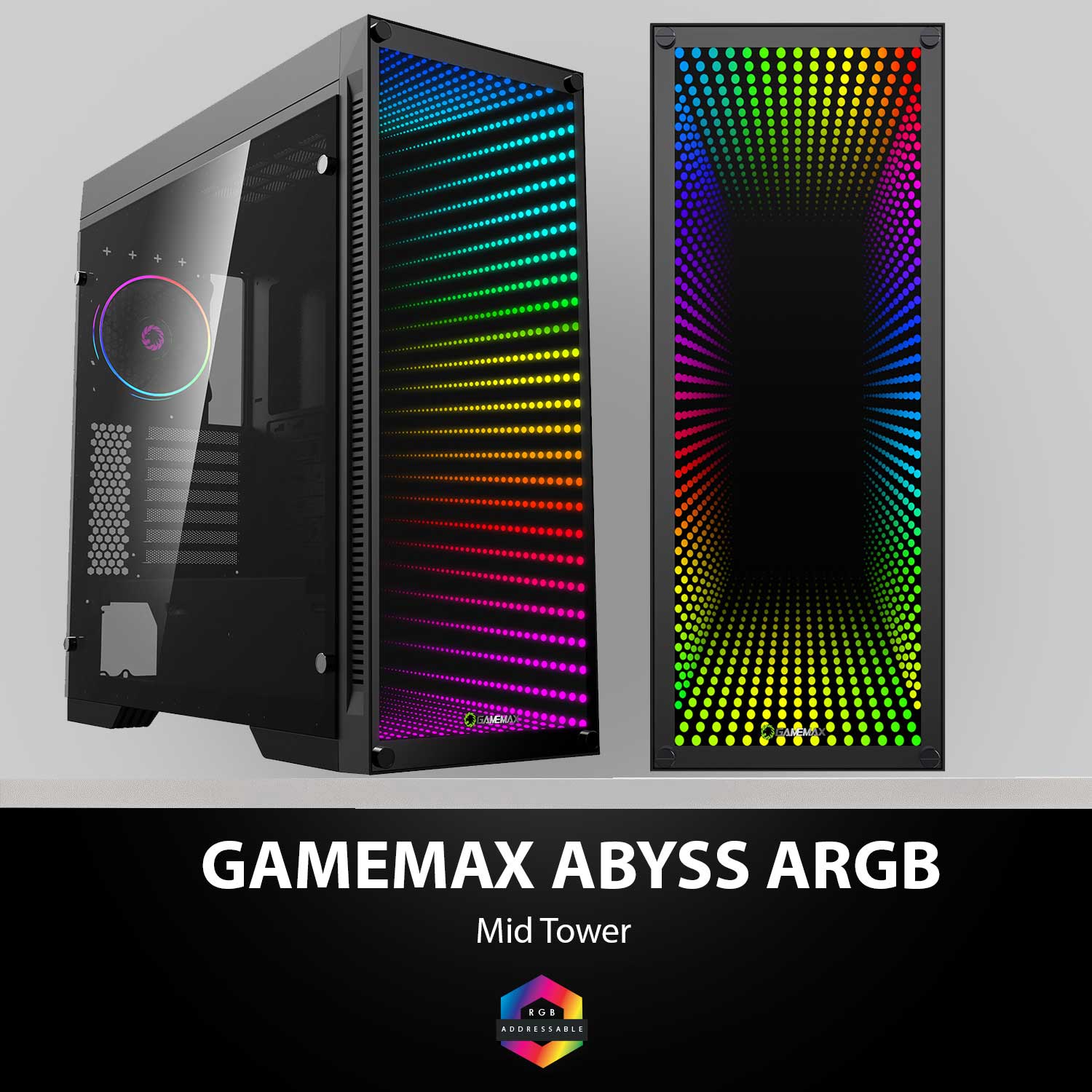

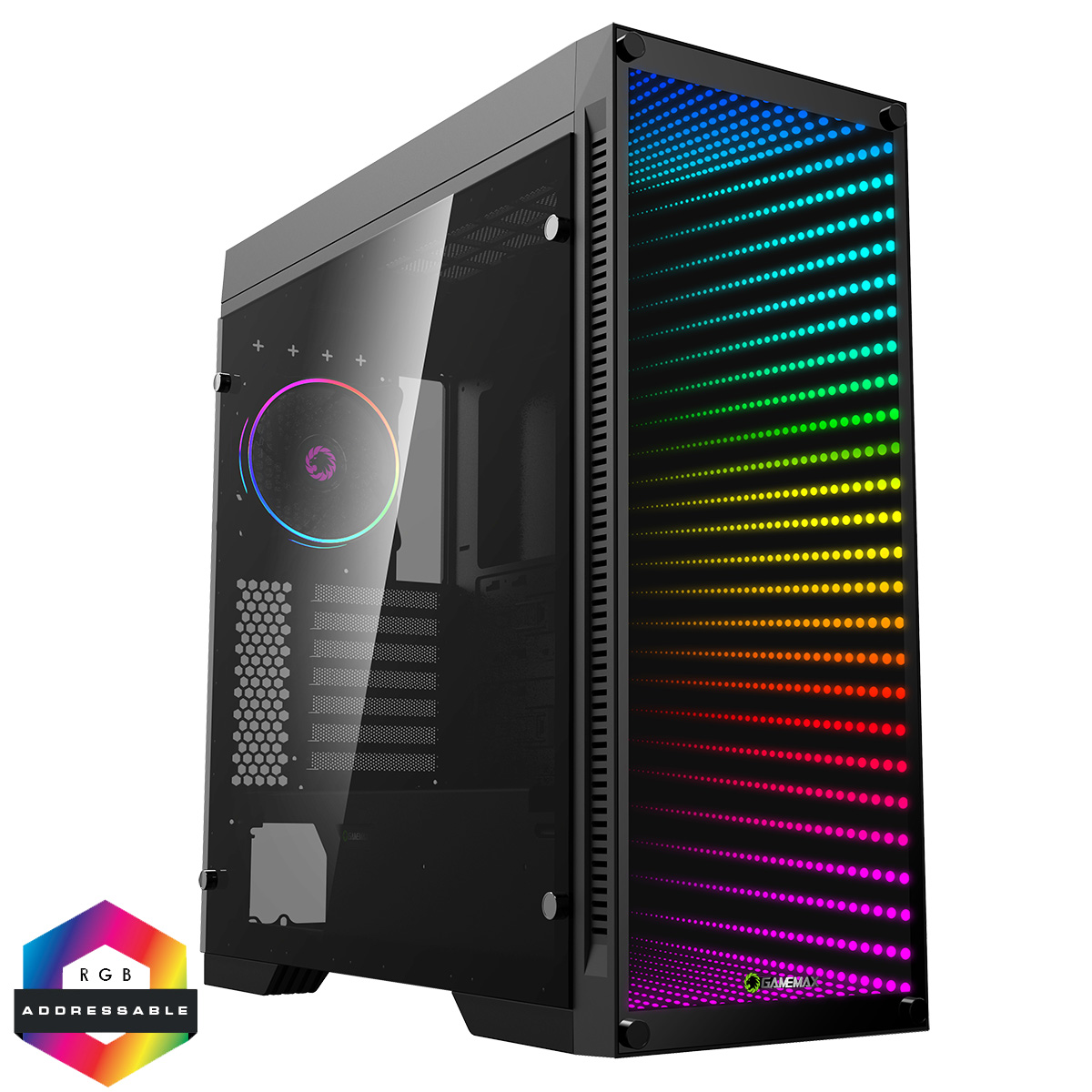

The GameMax Abyss ARGB is an upgrade from the RGB edition and joins the already popular Abyss family. An exceptional looking gaming case this will look great in any set up and is one of the most striking cases available.

Abyss A-RGB Full Tower Tempered Glass Gaming Case

The GameMax Abyss ARGB is an upgrade from the RGB edition and joins the already popular Abyss family. An exceptional looking gaming case this will look great in any set up and is one of the most striking cases available.

The front panel made using an infinity mirror with ARGB lighting and ventilation on both sides of the front panel provides direct airflow in to your system.

It is not just the aesthetics of this case that sets it apart from a lot of Full-Tower cases but the functionality of this case is also very impressive, with room to mount a total of seven fans and the ability to fit a 360mm radiator on the front or top and the rear can fit up to a 120mm radiator.

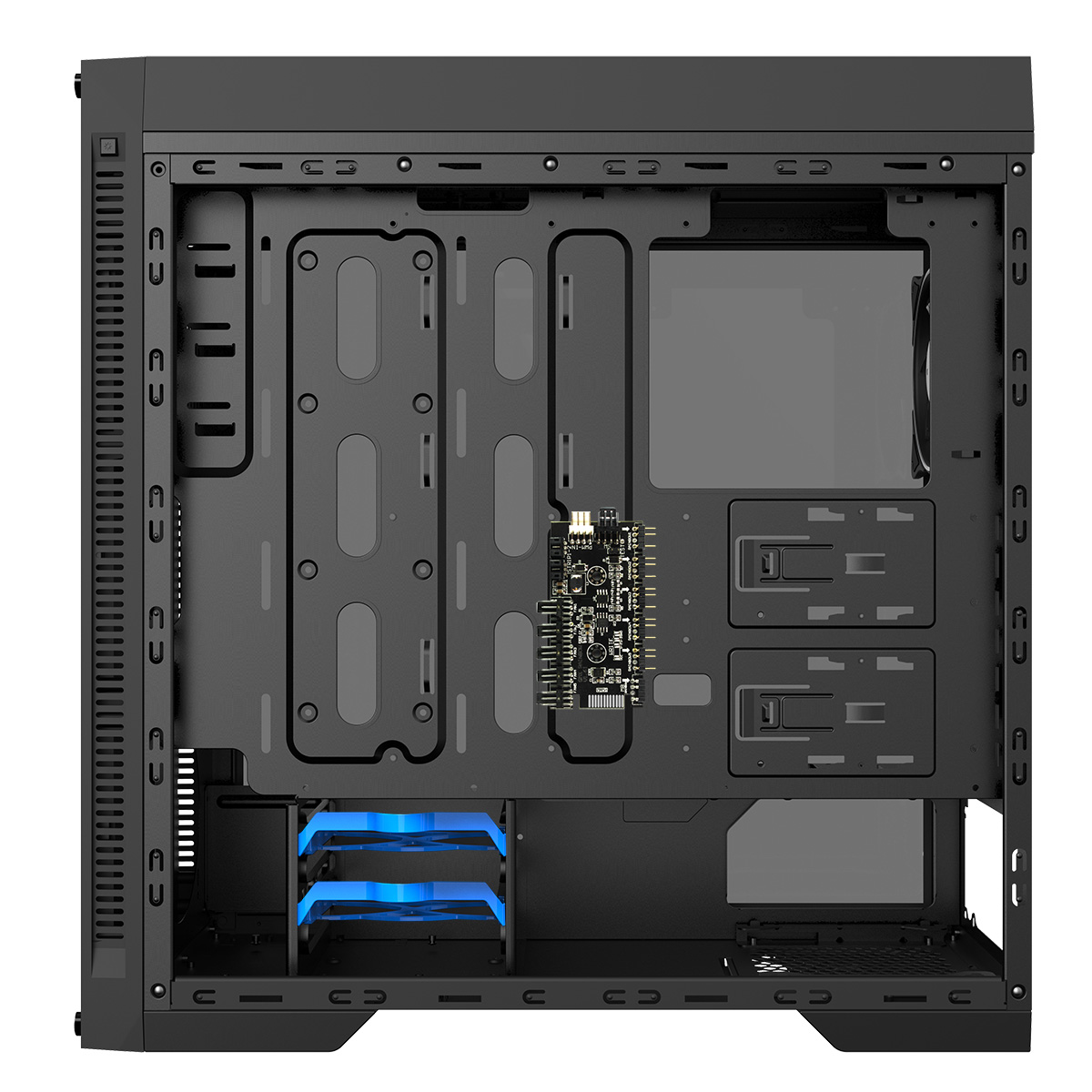

The Abyss ARGB comes with a pre-installed ARGB hub allowing for stunning lighting effects and easy connection to your system. You can connect up to five fans and two LED strips to the hub and sync all to your motherboard using the 3 Pin AURA connection, please note the hub to motherboard AURA connection is not included and will needed to be purchased separately. Please note the included hub supports a total of 5 fans.

The left side panel is made of a 4mm tempered glass allowing you to show off your internal components and lighting.

Situated on top of the Abyss ARGB is two USB3.0 ports, two USB2.0 ports, two fan controllers, HD Audio and Mic Jacks.

In line with the GameMax ethos this case offers style, performance and the ultimate experience.

Key Features

Design – The Abyss ARGB is excellent on the eye with an included infinity mirror, this optical illusion creates a real spectacle and will look great anywhere. It is not only looks GameMax have excelled on but the functionality for a case is also excellent, with room to fit an E-ATX motherboard and the easy to build internal layout makes the Abyss ARGB an exceptional full-tower for first time or experienced builders.

Motherboard Sync – You can now take your colour control to new levels with the included ARGB motherboard connection on the PWM hub, simply connect the 3pin AURA from your motherboard and you can use the mobo software to sync your fans and infinity mirror the way you like.

Excellent Airflow – With ventilation running down either side of the front panel the Abyss ARGB is designed with direct airflow in mind. Versatile cooling options are on offer inside the Abyss. The chassis can mount seven fans and with multiple radiator configurations including the option to fit a 360mm radiator at the front or top, you really now can get the right amount of air for an unhindered performance.

ARGB Hub – Included in the Abyss ARGB is an ARGB PWM hub, connect up to five fans and two LED strips, have access to 18 colour modes manually or have even more using the motherboard software. Once all connected enjoy PWM auto speed controlled via MB’s PWM signal or use the two fan controllers located on the top of the Abyss to control your speed of your fans.

Tempered Glass – A 4mm full left side tempered glass panel to show off your build from all angles.

Easy Maintenance – Located on the top of the Abyss ARGB is a magnetic dust filter to help prevent dust from getting into your build and improve the overall cooling performance.

GPU Bracket – The chassis includes a bracket designed for support to the graphics card, prevents sag and the bracket allows for the installation of larger graphic cards.

    The Abyss is compatible with the following fans

    – GameMax Mirage Dual-Rung Rainbow RGB 120mm

    – GameMax Mirage White Dual Ring Rainbow RGB 120mm

    – GameMax Razor 120mm Rainbow ARGB

    – GameMax Velocity 120mm Rainbow ARGB

    – GameMax ARGB 3 in 1 kit

    The Abyss is compatible with the following hubs

    – Spectrum ARGB Hub

    – Gamemax ARGB Fan Hub

    Chassis Dimensions (Excluding Fascia / Panels): (W) 210 x (H) 452 x (D) 470mm
    PSU max. Length (mm): 220mm
    Fan Controller Included: Yes
    Fan Controller Power Via: Sata Connector
    LED Controller: Yes
    Fan Power Connector: 3 Pin Fan Connector
    LED Power Connector: 3 Pin ARGB
    Fan Controller Via: PWM & I/O Panel
    Supported Qty of Fans (max.): 5
    Supported Qty of LED (max.): 5 ARGB & 2 LED Strips

    Case Specifications

    Form Factor: Full Tower
    Motherboard Support: ATX, Micro ATX, Extended ATX, Mini ITX
    PSU Support: Standard ATX
    PSU Location: Bottom
    Gaming Case: Yes
    Water Cooling: Water Cooling Ready!
    Supported Radiator Size: 360mm
    Supported Radiator Positions: Front, Top
    Body Material: 0.8mm SPCC
    Front Bezel Material: ABS & Tempered Glass
    Side Panel: Tempered Glass
    Internal Cable Management Depth: 20mm
    External Bays:
    Internal Bays: 2 x 3.5” Internal
    5 x 2.5” Internal
    Drive Bay Notes: 2 x 2.5″ & 2 x 3.5″ Shared
    Expansion Slots: 7 x Full Size
    Cooling Front: Space For 3 x 120mm Fans (Not Included)
    Cooling Top: Space For 3 x 120mm or 2 x 140mm Fans (Not Included)
    Cooling Rear: Space For 1 x 120mm Fan (1 x 120mm GameMax Mirage ARGB Fan Included)
    Cooling Side: None
    Cooling Bottom: None
    Fan Controllers: 1 Fan Controllers, controlling up to
    5 fans in total
    IO Ports: 2 x USB 3.0
    2 x USB 2.0
    1 x HD Audio
    1 x Microphone
    GPU Max Length: 450mm
    CPU Cooler Maximum Height: 165mm
    Front Bezel Colour: Black
    Body Colour: Black
    System Cabinet Features:
    PSU Included: No

    General Specifications

    Manufacturer Part Number: ABYSS-TR
    EAN Number: 6931858770118
    Has Mains Plug: No
    Colour: Black
    What’s In The Box: Case
    Accessory Pack
    Manual
    Unit (Product) Dimensions (mm): 225mm x 531mm x 515mm (W x H x D)
    Packaging Dimensions (mm): 294mm x 605mm x 573mm (W x H x D)
    Net Weight (KGs): 10.5 KGs
    Gross Weight (KGs): 12 KGs
